102 Upgrade and Maintenance Manual RX1330 M1
Power supply
6.3.2.1 Preliminary steps
No steps needed.
6.3.2.2 Removing a hot-plug power supply unit
Ê Remove the power cord from the dedicated power supply unit as described
in section "Disconnecting the server from the mains" on page 46.

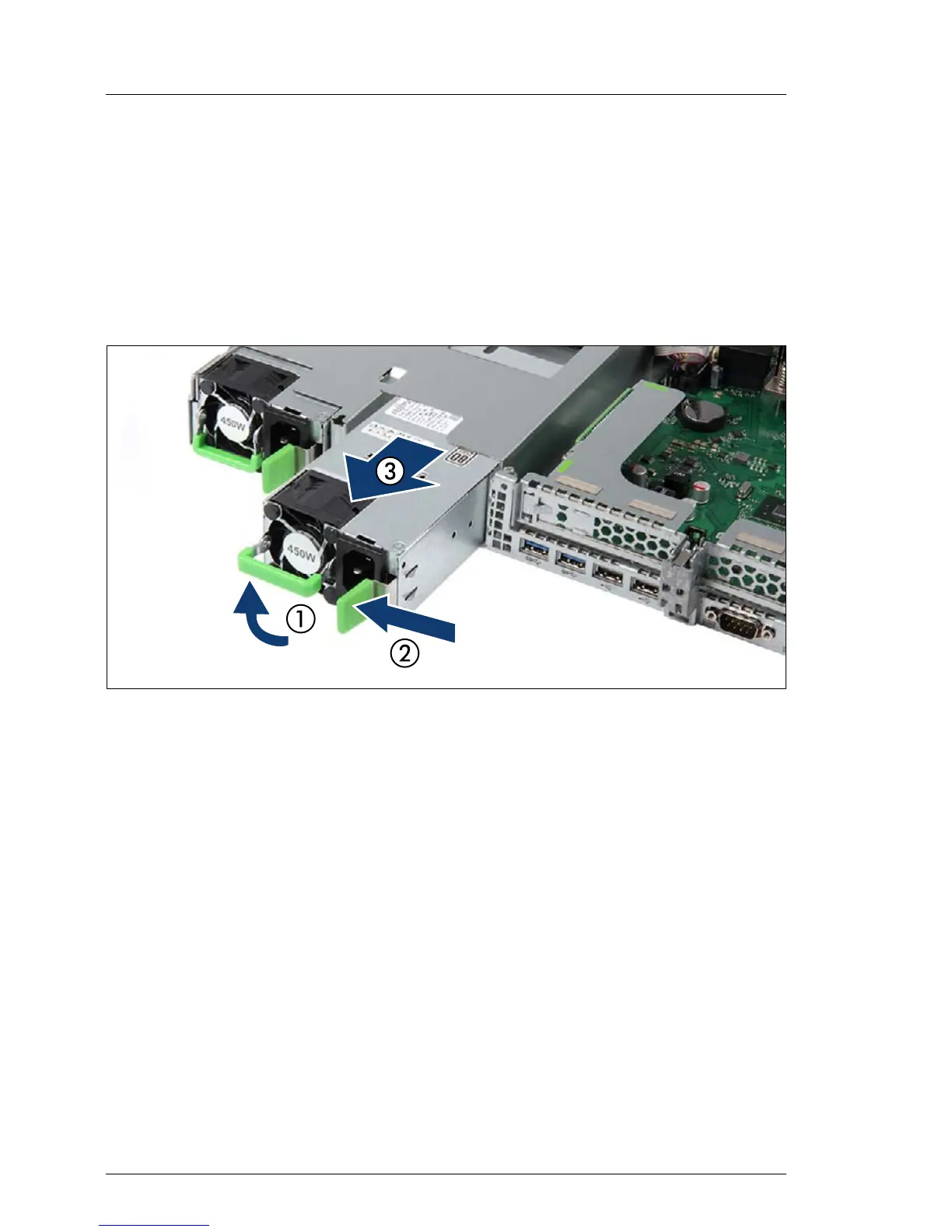

Figure 34: Unlocking and removing the hot-plug power supply unit
Ê Push the handle of the power supply unit halfway upward in the direction of
the arrow (1).
Ê Push the lock in direction of the arrow (2).
Ê Grip the handle and pull out the power supply unit in the direction of the
arrow (3).
V CAUTION!
Never leave the bay for the power supply unit empty for more than two
minutes during operation. Otherwise, excessive temperatures could
damage system components.

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
