Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

RX1330 M1 Upgrade and Maintenance Manual 305
Appendix

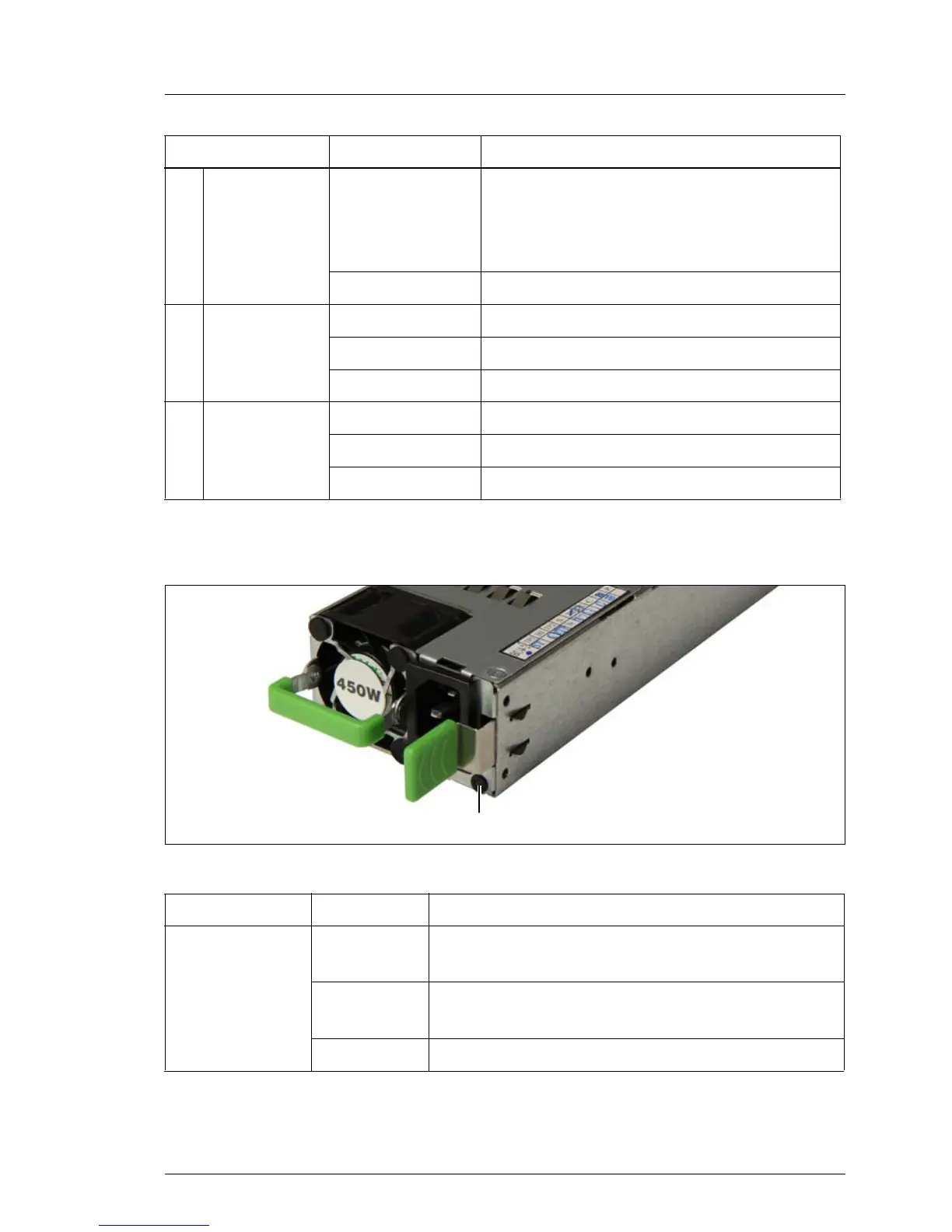

16.2.1.5 Indicators on hot-plug power supply units (slide-in units)
Figure 228: Indicator on the hot-plug power supply unit
1 ID indicator
blue on
server has been highlighted using
ServerView Operations Manager, iRMC
web frontend or the ID button on the
front panel for easy identification
blue flashing local monitor off
2
LAN
link / transfer
indicator
green on LAN connection established
off no LAN connection
green flashing data transfer in progress
3
LAN speed
indicator
yellow on traffic a transfer rate of 1 Gbit/s
green on traffic a transfer rate of 100 Mbit/s
off traffic a transfer rate of 10 Mbit/s
Indicator Status Description
Status indicator
green
flashing
power supply unit operational (standby mode)
green on
power supply unit operational (server
operating)
orange on power supply unit failure
Indicator Status Description
0

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
