Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

130 Upgrade and Maintenance Manual RX1330 M1
Hard disk drives / solid state drives

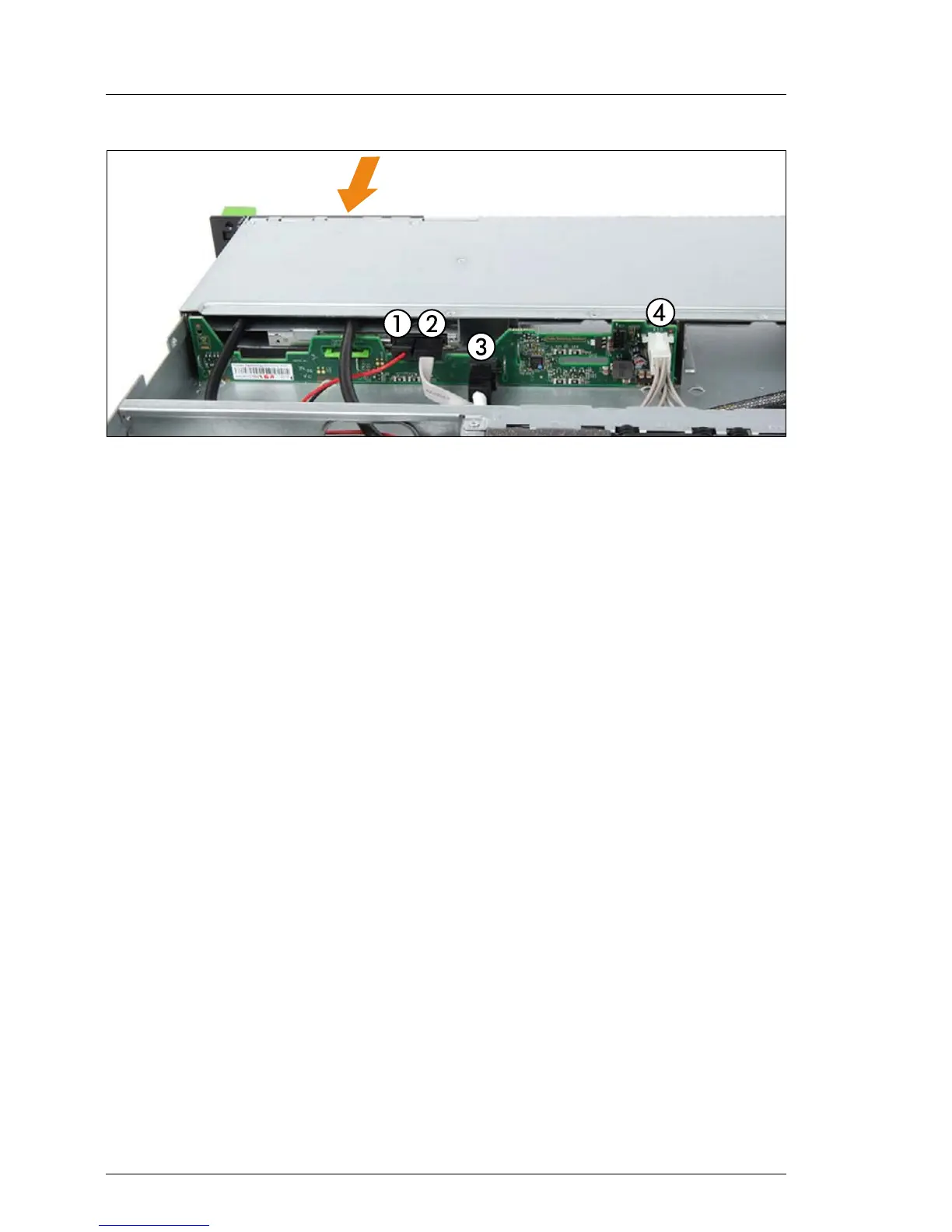

Figure 63: Connecting the cables to the ODD and the 4 x 2.5-inch HDD backplane
Ê If applicable, push the ODD in its bay until the ODD latch engages (see
orange arrow).
Ê Connect the following cables to the ODD and the HDD backplane:
– (1) power cable to ODD (if applicable)
– (2) SATA cable to ODD (if applicable)
– (3) SAS cable to connector "X5" on the HDD backplane
– (4) power cable to connector "PWR" on the HDD backplane
I If applicable, connect the OOB cable to connector "SMBus" on the
HDD backplane.
For the cable plan see section "Cabling" on page 285.

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
