Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

RX1330 M1 Upgrade and Maintenance Manual 179
Expansion cards and backup units
Example RAID controller D3216

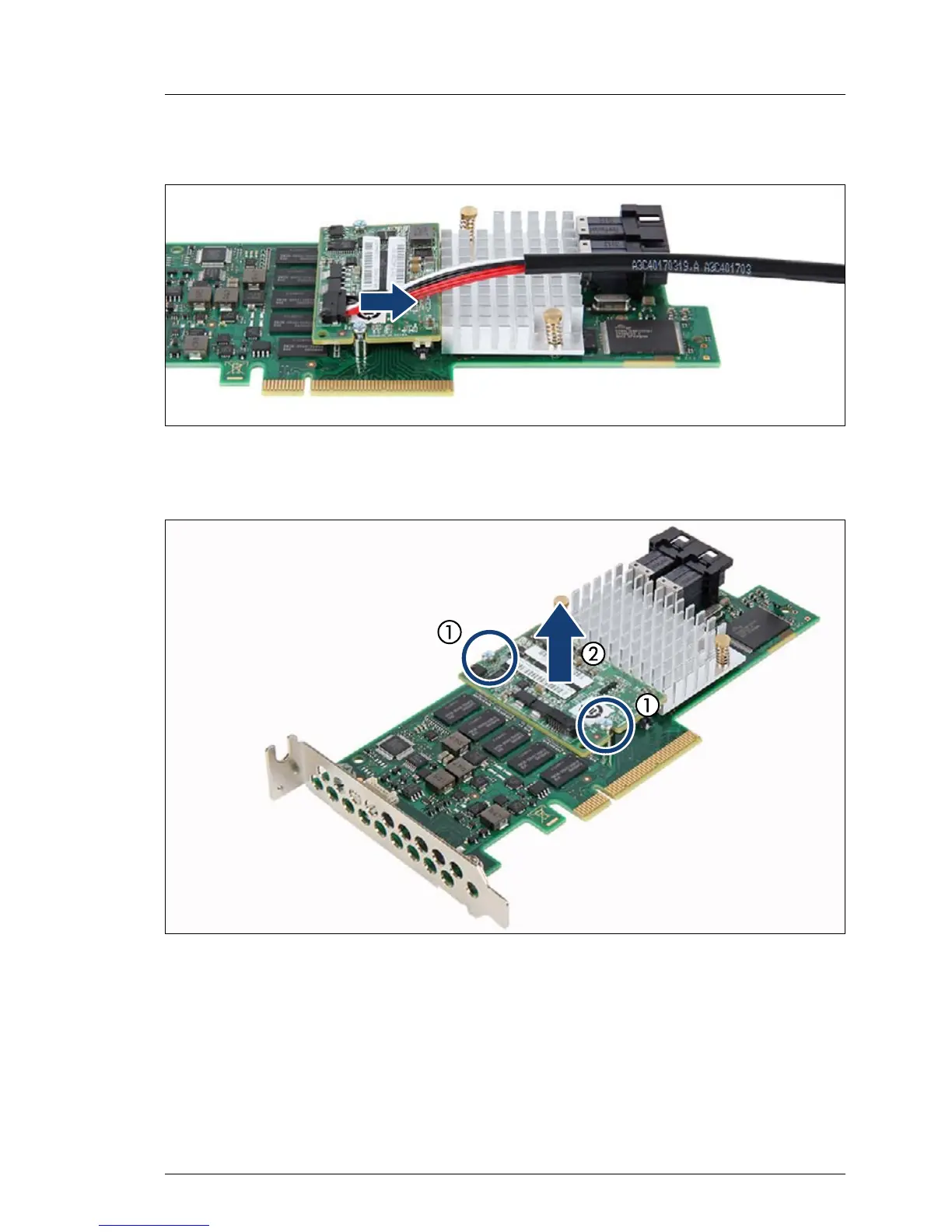

Figure 111: Disconnecting the FBU adapter cable from the TFM
Ê Disconnect the FBU adapter cable from the TFM.
Figure 112: Removing the TFM
Ê Remove the two screws (1).
Ê Remove the TFM (2).
I Note for replacing the TFM:
The two spacer bolts can remain on the RAID controller.

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
