Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

294 Upgrade and Maintenance Manual RX1330 M1
Cables

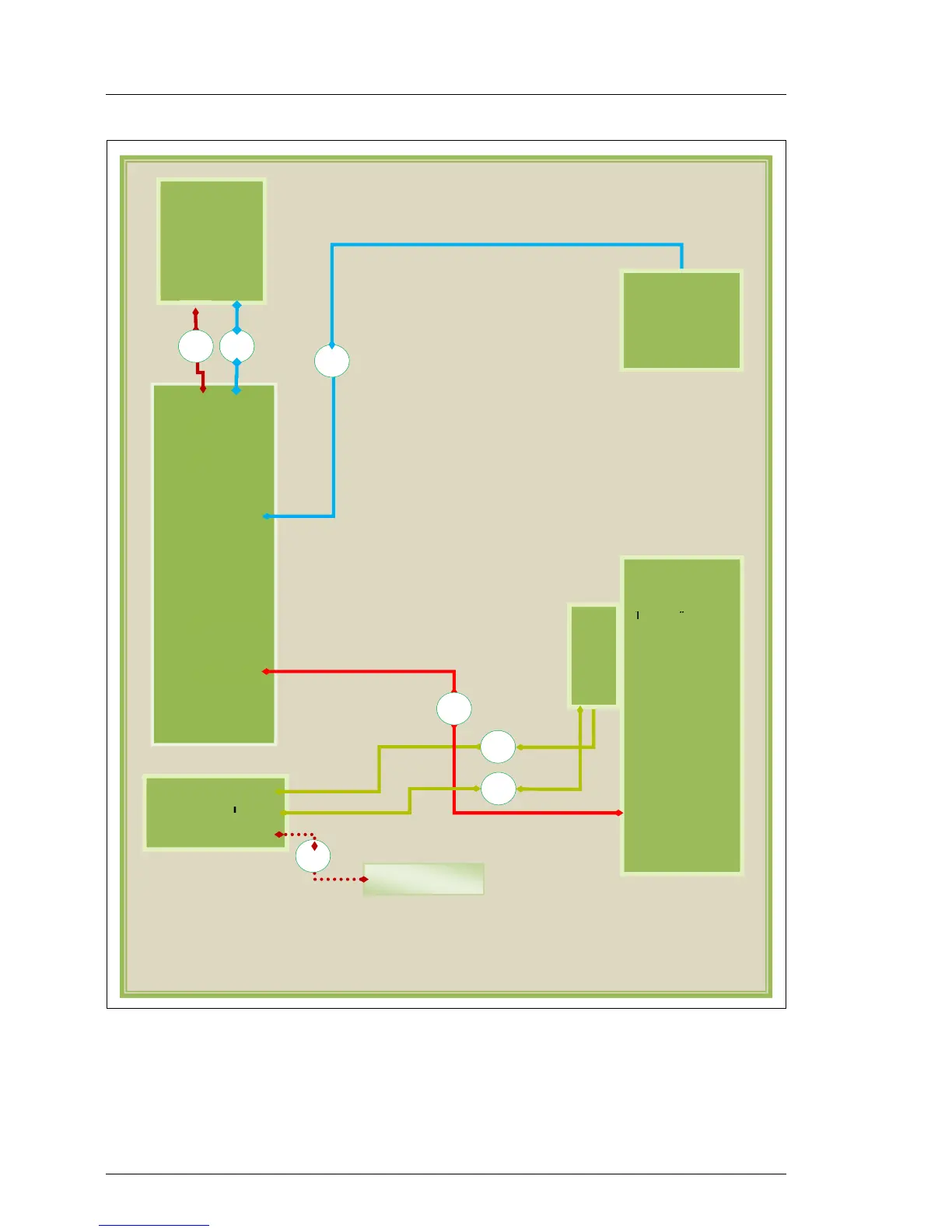

Figure 214: Cabling 10x 2.5-inch HDD, redundant power supply, Cougar 4
S
AS BP
A3C40170040
10 x 2.5“
1
0
x
2.
5
“
PWR
D3229
SATA HDD
P
W
R
C
T
R
L
P
W
R
Frontpanel
Front USB
Front VGA
ODD Data
ODD PWR
HDD PWR
SMBus
Frontpanel
+ 1x USB
Front USB
C15
RAID
Controller 1
MLC1
o
ll
e
r
1
MLC2
FBU
FBU
C20
C21
C14
Expander
C20
PSU E575
P
W
R
C
T
R
L
P
W
R
C10 C9
Cougar IV

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
