Fujitsu PRIMERGY RX1330 M1

RX1330 M1 Upgrade and Maintenance Manual 133
Hard disk drives / solid state drives

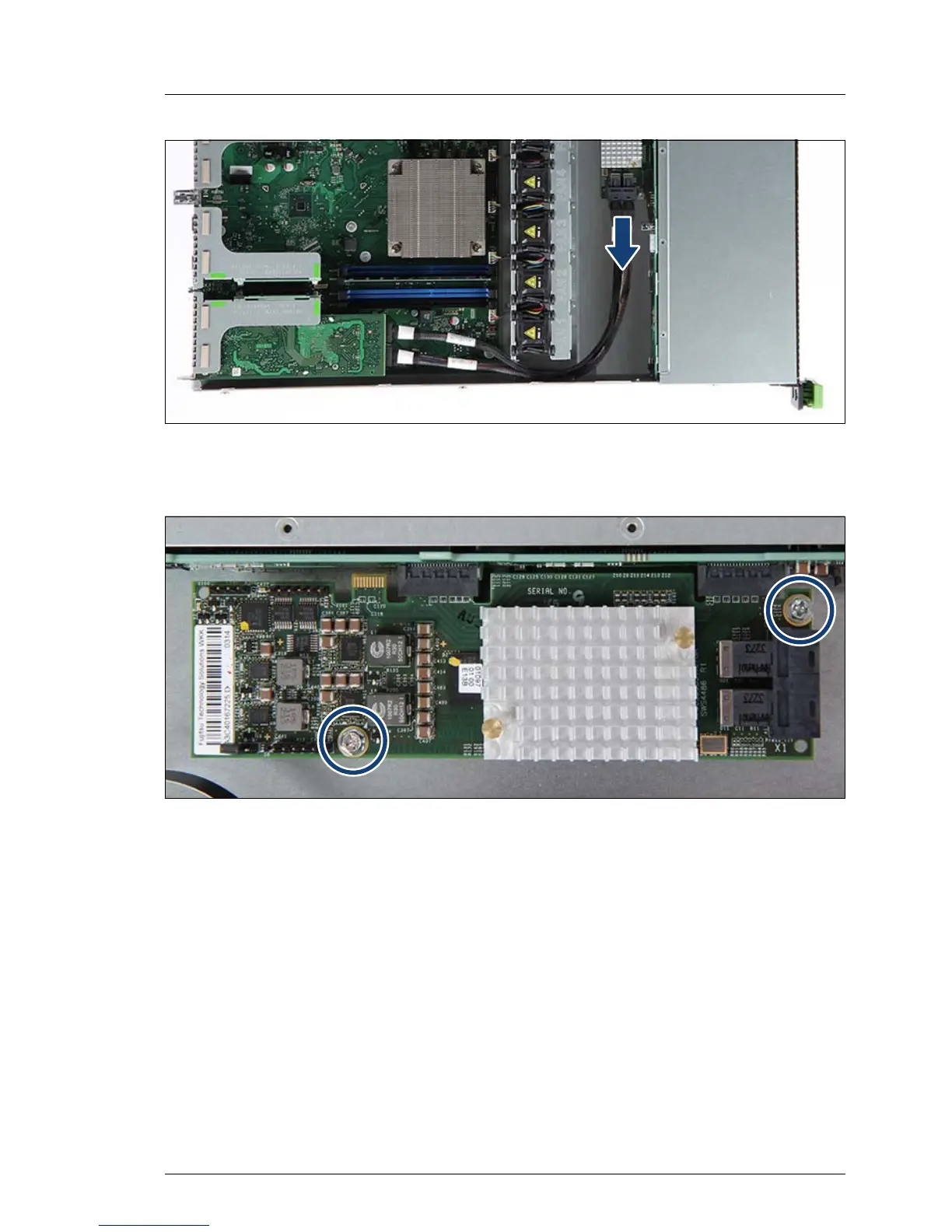

Figure 66: Disconnecting SAS cables
Ê Disconnect the two SAS cables from the SAS expander board.
Figure 67: Removing the SAS expander board (A)
Ê Remove the two screws (see circles).
