Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

112 Upgrade and Maintenance Manual RX1330 M1
Power supply

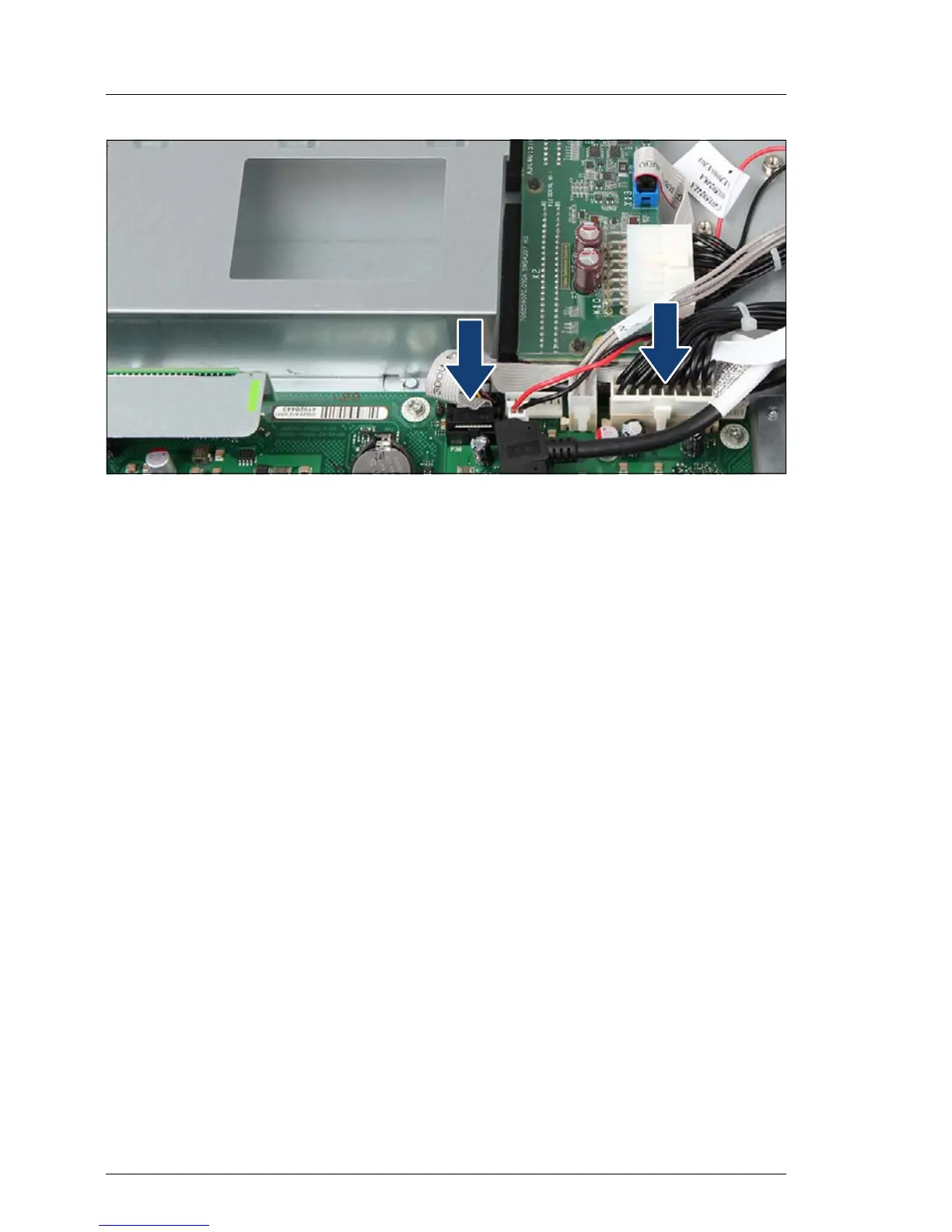

Figure 44: Connecting the power cables to the system board
Ê Connect the two power cables to the system board connectors "P30" and
"PWR1".
Installing hot-plug power supply unit and dummy cover
Ê Install the power supply unit as described in section "Installing a hot-plug
power supply unit" on page 98.
I The power supply unit must be installed in the first bay (left bay seen
from rear side). The dummy cover must be installed in the second
bay.
Ê Install the dummy cover as described in section "Installing the dummy cover"
on page 103.

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
