Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

166 Upgrade and Maintenance Manual RX1330 M1
Expansion cards and backup units

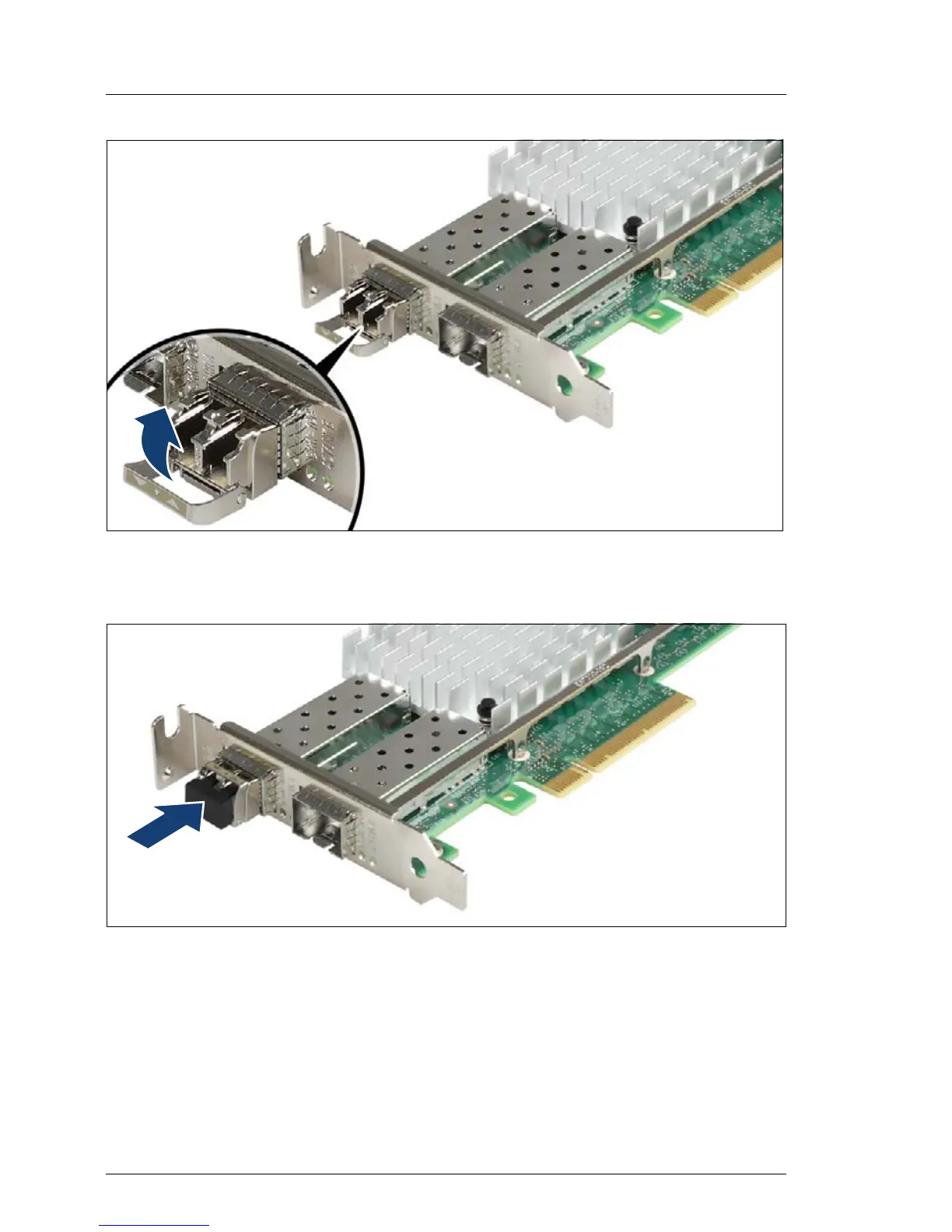

Figure 99: Latching the locking bail
Ê Carefully fold up and latch the locking bail.
Figure 100: Installing the protective optical port plug
Ê If the SFP+ transceiver module is not immediately connected to an LC
connector, attach the protective optical port plug to the transceiver optical
bores.

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
