Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

184 Upgrade and Maintenance Manual RX1330 M1
Expansion cards and backup units

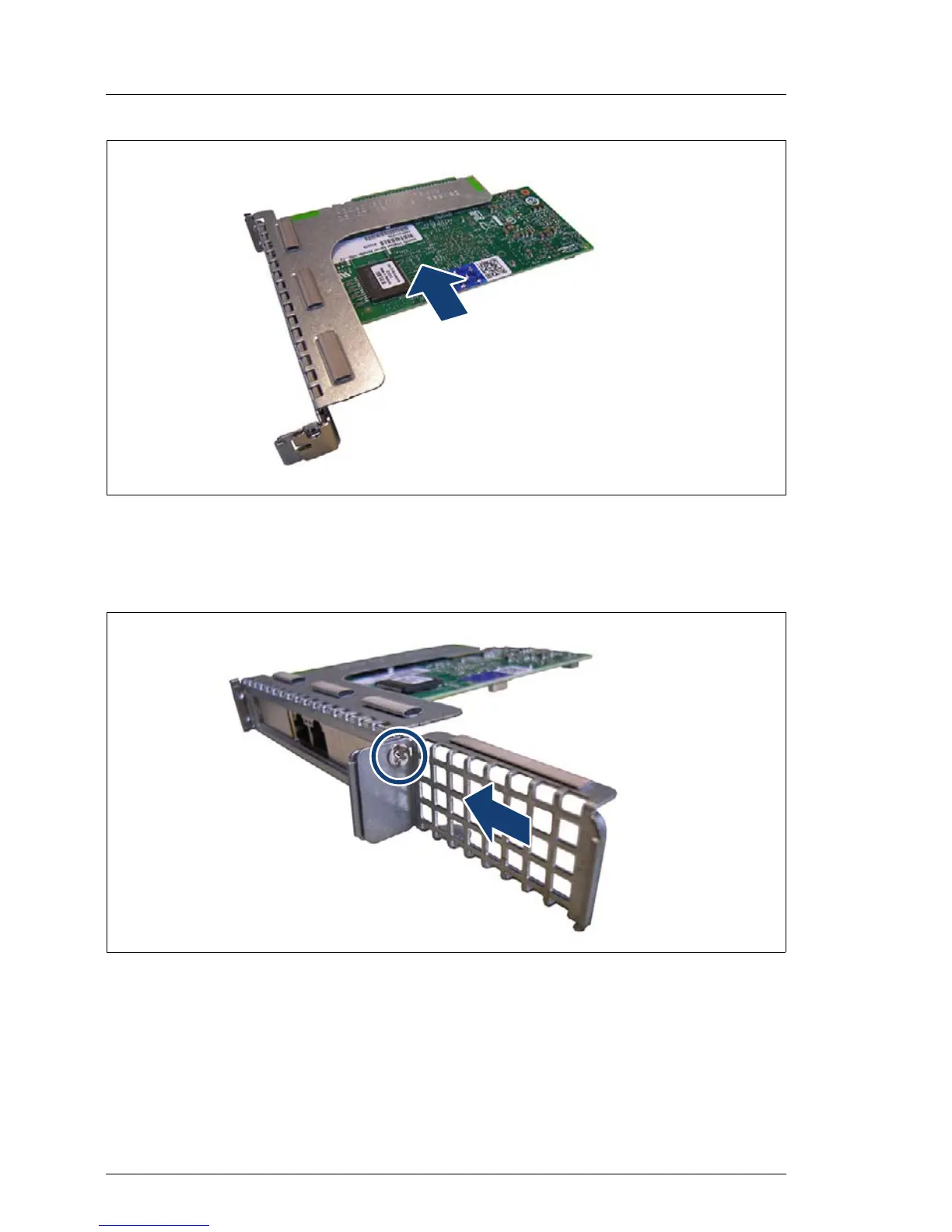

Figure 119: Installing the expansion card - example full height riser module
Ê Install the expansion card as described in section "Installing the expansion
card" on page 171.
Figure 120: Installing the extension bracket
Ê Fasten the extension bracket with one screw to the full height riser module
(see circle).

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
