226 Upgrade and Maintenance Manual
RX1330 M1
Optical disk drive
Storing the ODD latch
Depending on chassis variants the ODD latch can be stored in different ways:
– ODD latch and two screws in a package
– fastened with two screws to the chassis of the fan bridge

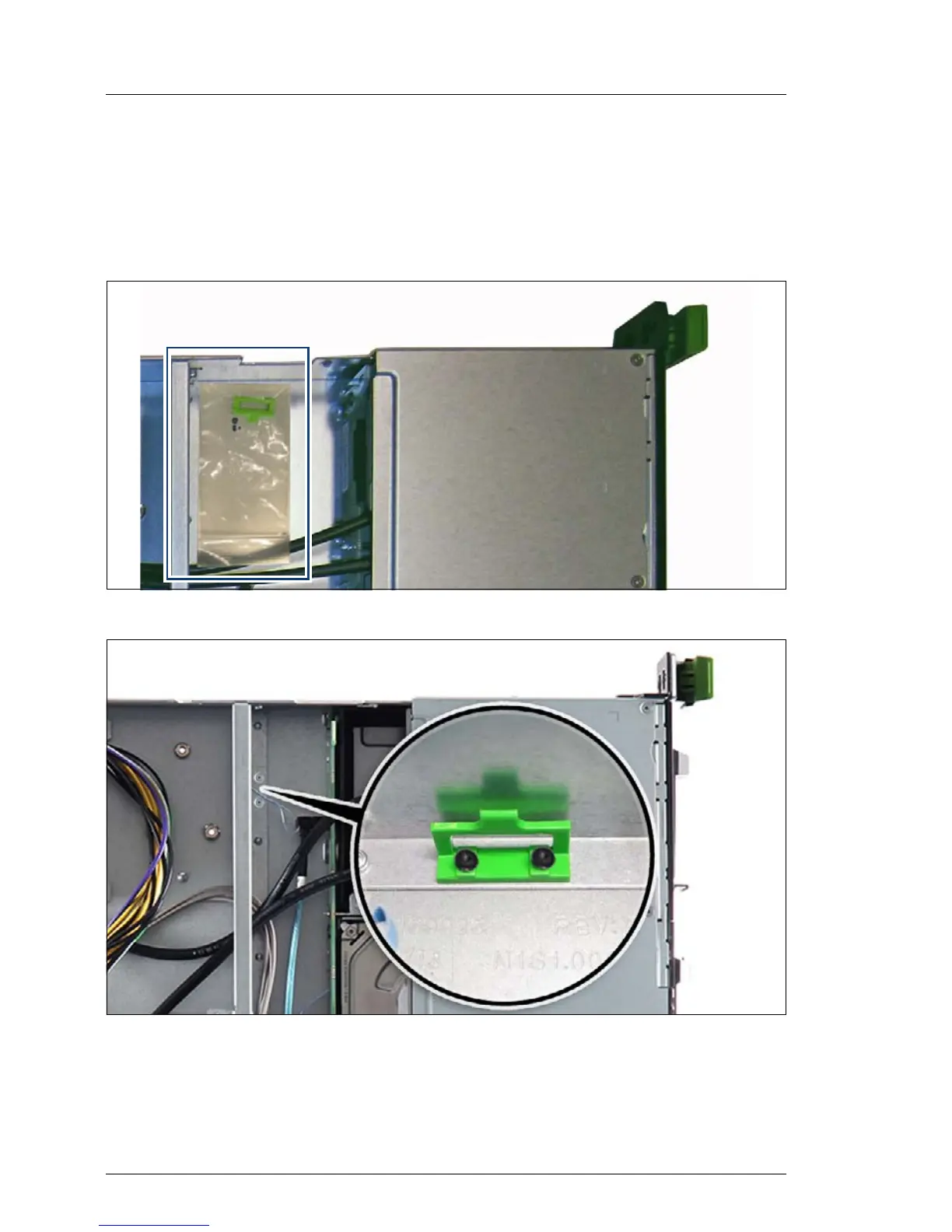

Figure 155: Example ODD latch in a package
Figure 156: Example ODD latch on fan bridge
