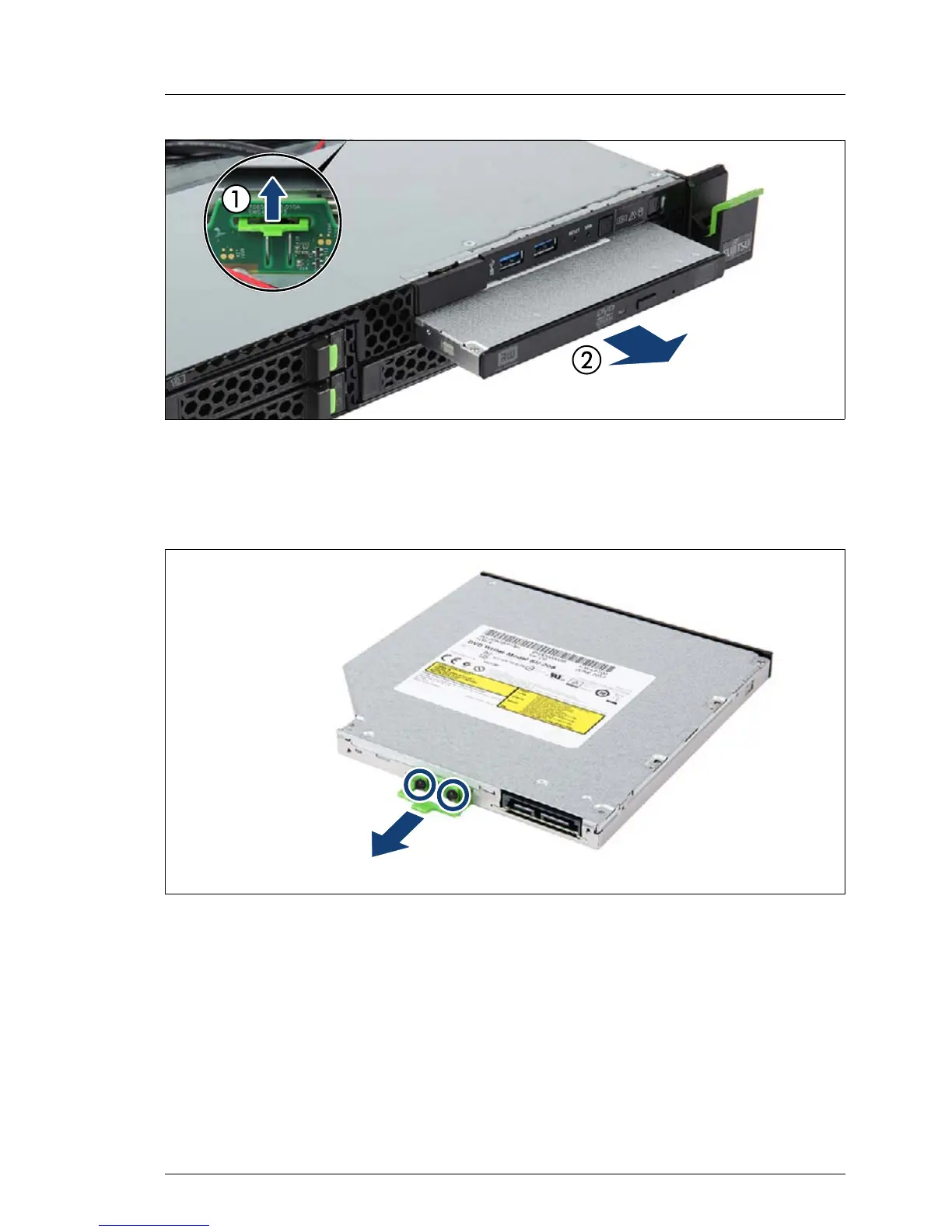

Figure 162: Removing the ODD
Ê Press the ODD latch in direction of the arrow until it disengages (1).
Ê Pull the ODD out of the bay (2).
Figure 163: Removing the ODD latch from the ODD
Ê Remove the two screws (see circles).
Ê Remove the ODD latch.
Ê If no new ODD will be installed:
Ê Store the ODD latch in a package (see figure 155) or
Ê Fasten the ODD latch with two screws to the fan bridge (see figure 156).
