RX1330 M1

Upgrade and Maintenance Manual 263

System board and components

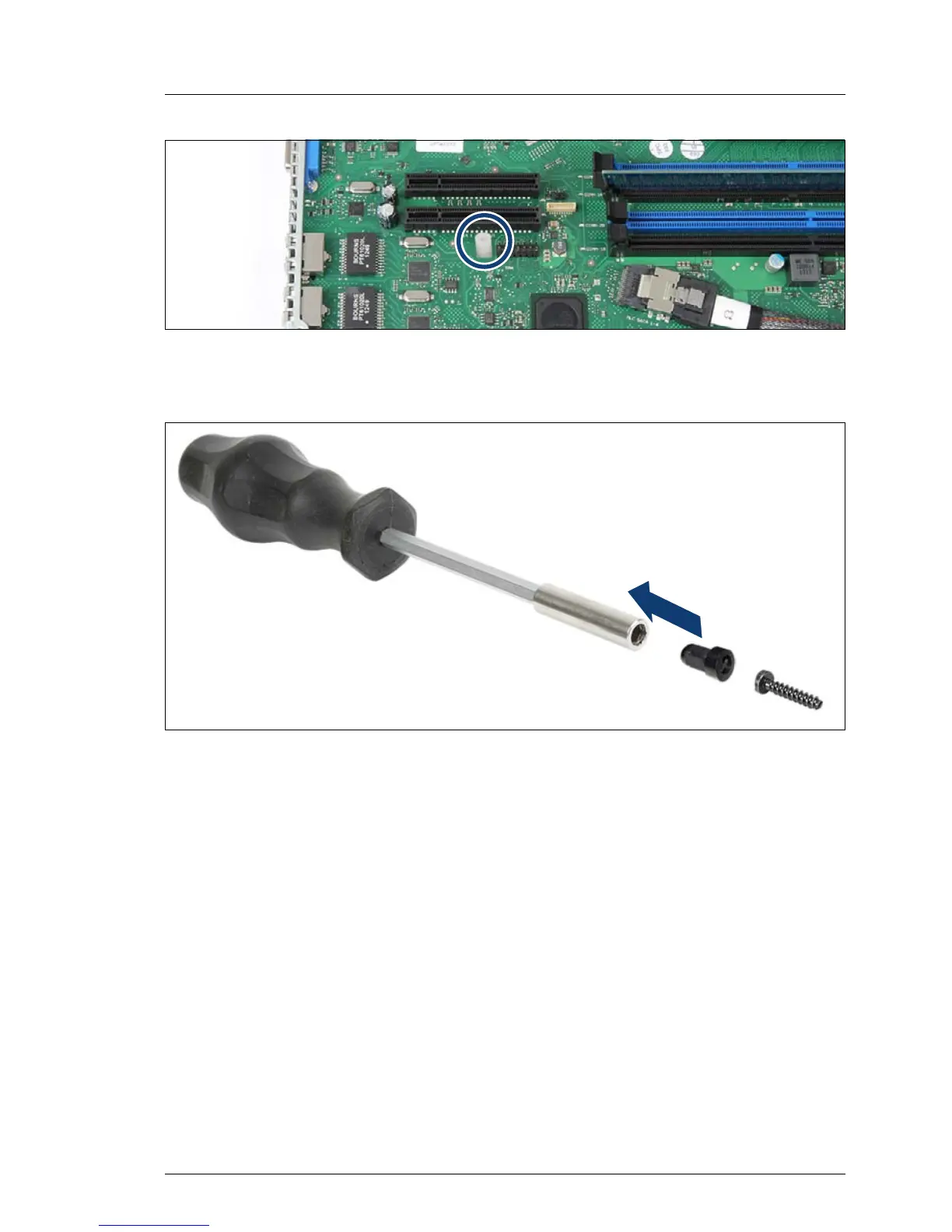

Figure 195: Inserting the TPM spacer on the system board

Ê Insert the TPM spacer into the hole on the system board.

Figure 196: TPM bit insert

Ê Attach the TPM bit insert or TPM module fixing tool (Japanese market) to a

bit screw driver.
