Basic hardware procedures

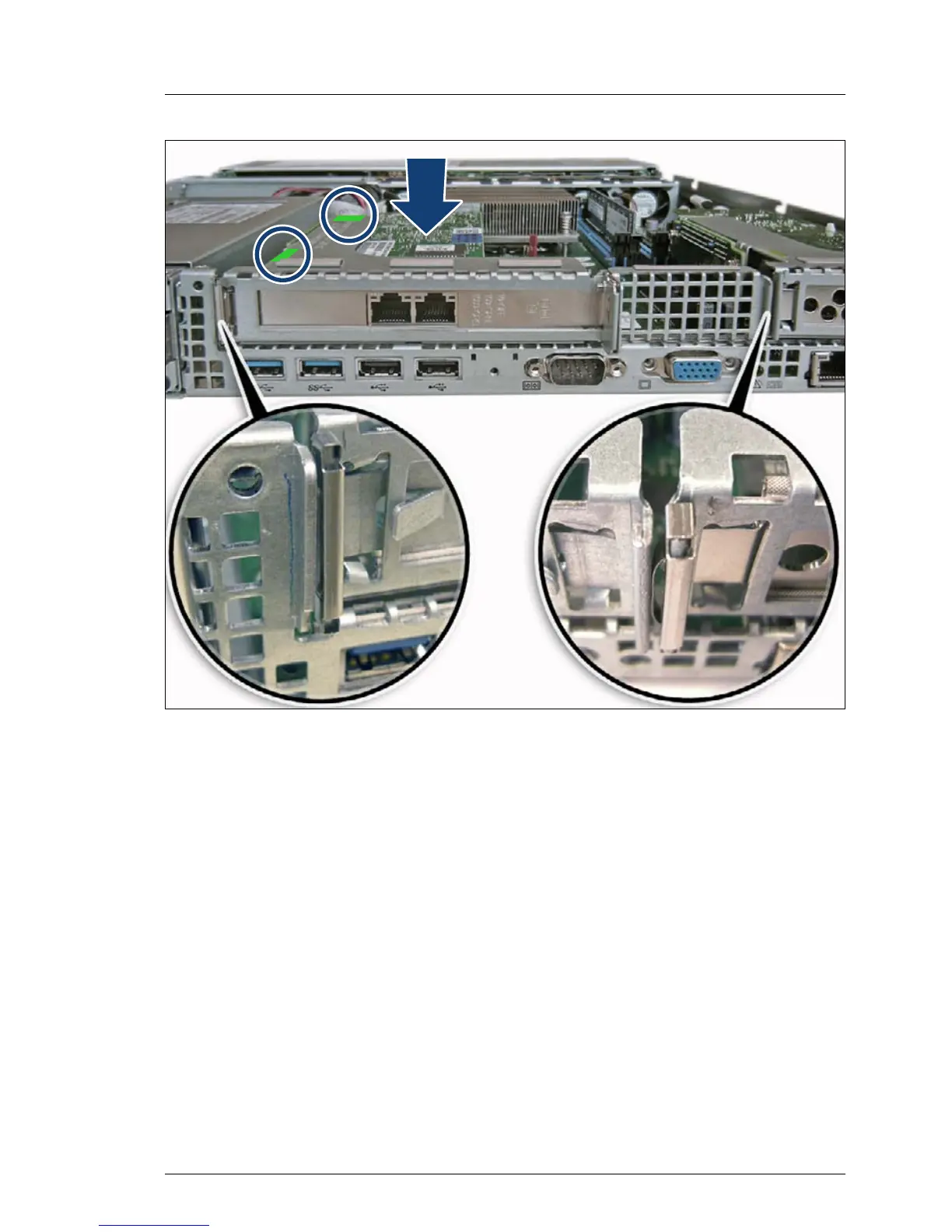

Figure 19: Installing the full height riser module
Ê Insert the riser card into the system board slot and press down the green
touch points (see circles).
V CAUTION!
Valid for the full height riser module:
Make sure that the EMC springs make contact correctly (see close-
ups).
Ê If necessary, connect the cables to the other components.
