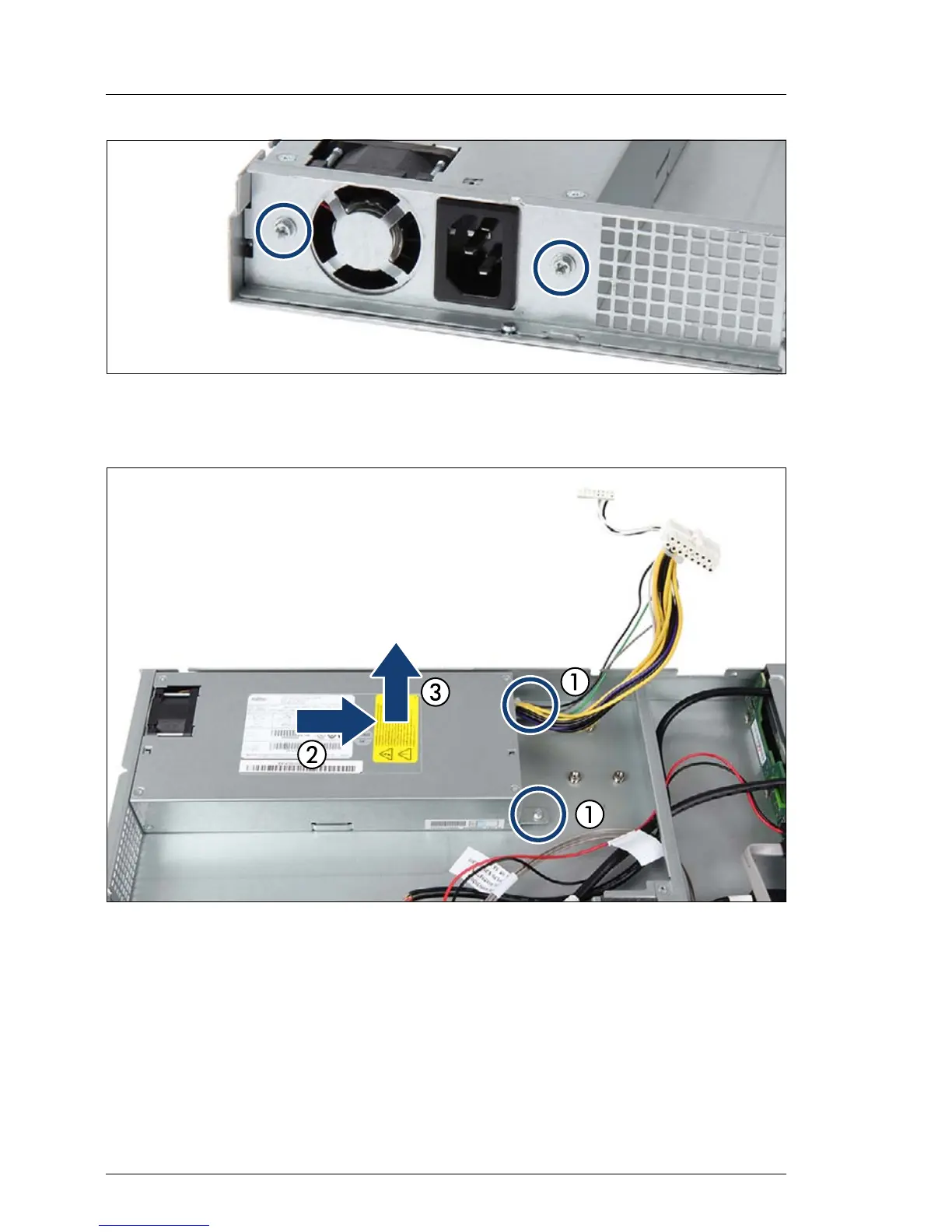

Figure 22: Removing the screws
Ê Remove the two screws (see circles).
Figure 23: Taking out the standard power supply unit
Ê Remove the two screws (1).
Ê Pull the power supply unit a few centimeters toward the inside (2).
Ê Take the power supply unit out upward (3).
