Fujitsu Server PRIMERGY TX1330 M1 User Manual

110 Upgrade and Maintenance Manual TX1330 M1
Power supply
6.3.2.2 Removing a hot-plug power supply unit

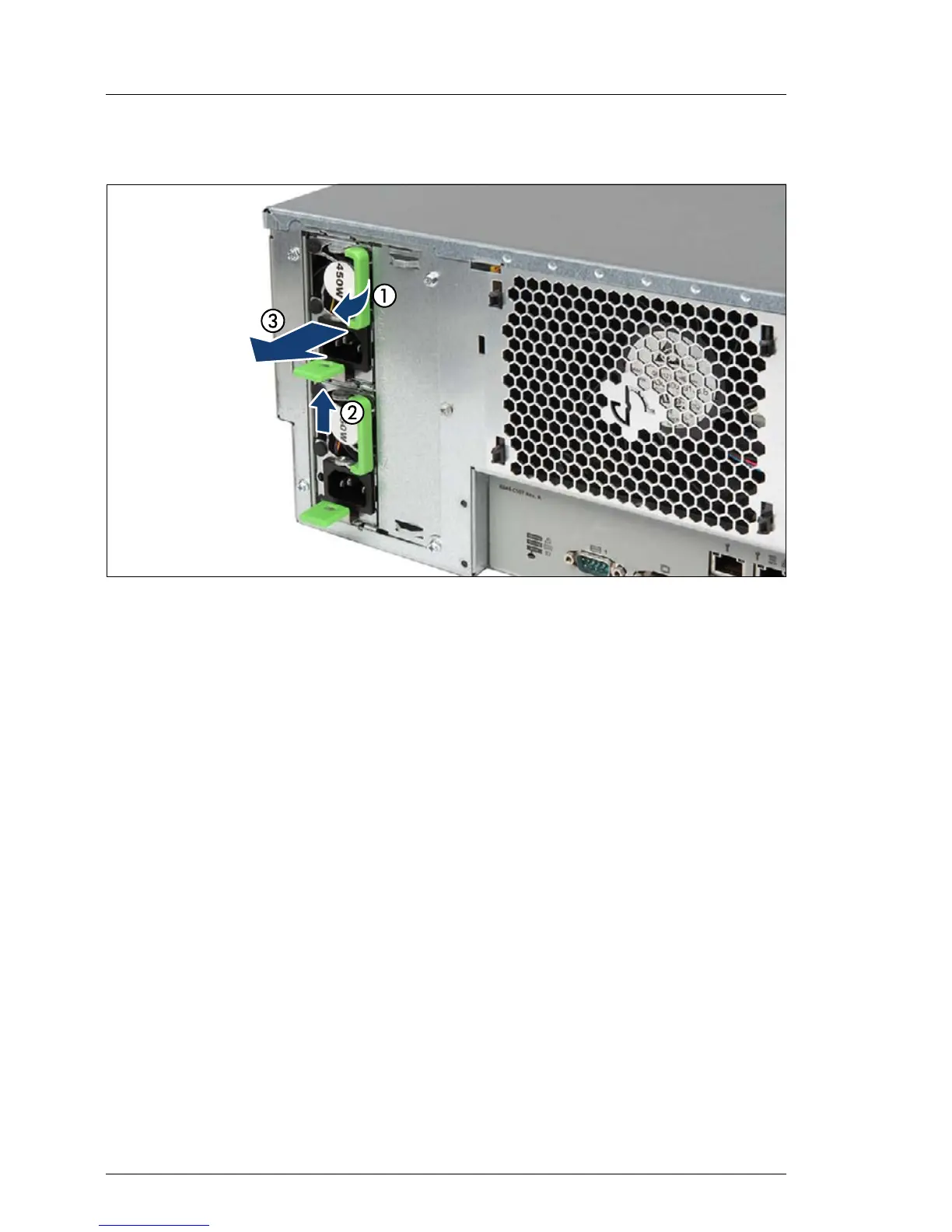

Figure 36: Removing a power supply unit
Ê Fold up the handle on the power supply unit (1).
Ê Press in on the green release latch (2).
Ê While keeping the green release latch pressed, pull the power supply unit
out of its bay (3).
V CAUTION!
Never leave the bay for the power supply unit empty for more than two
minutes during operation. Otherwise, excessive temperatures could
damage system components.

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
