Fujitsu Server PRIMERGY TX1330 M1 - Installing the Slimline Optical Disk Drive in the Slide-In Unit (if Applicable)

236 Upgrade and Maintenance Manual TX1330 M1
Accessible drives
12.2.4 Installing the slimline optical disk drive in the slide-
in unit (if applicable)

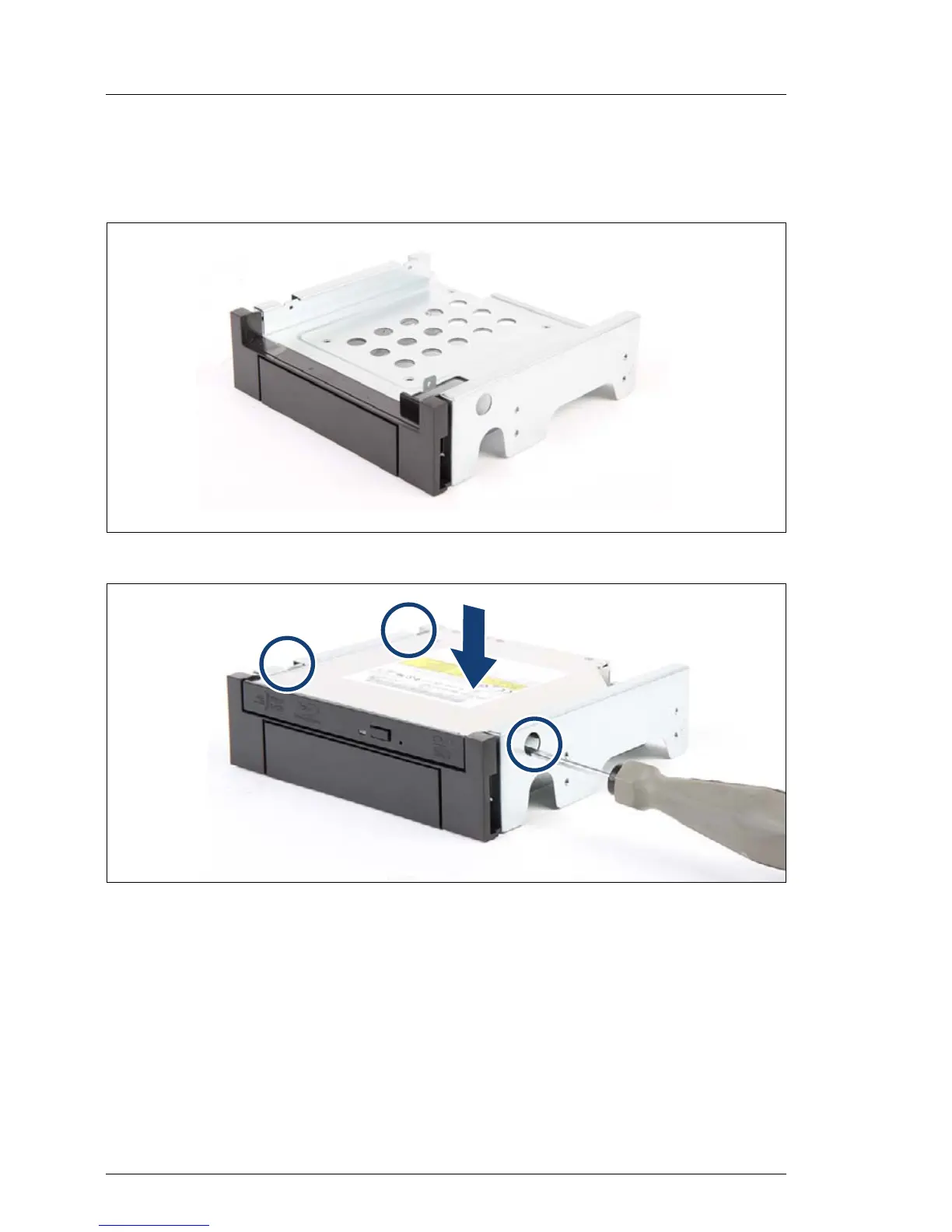

Figure 144: Slide-in unit for slimline ODD
Figure 145: Mounting the slimline ODD in the slide-in unit
Ê Insert the slimline ODD on the top.
Ê Fasten it with one M2 x 2.5 mm screw to the slide-in unit on the right side.
Ê Fasten it with two M2 x 2.5 mm screws to the slide-in unit on the left side.
Ê Install the slide-in unit as described in section "Installing an accessible
drive".
