Fujitsu Server PRIMERGY TX1330 M1 - Installing the TPM

TX1330 M1 Upgrade and Maintenance Manual 265
System board and components
14.4.1.2 Installing the TPM

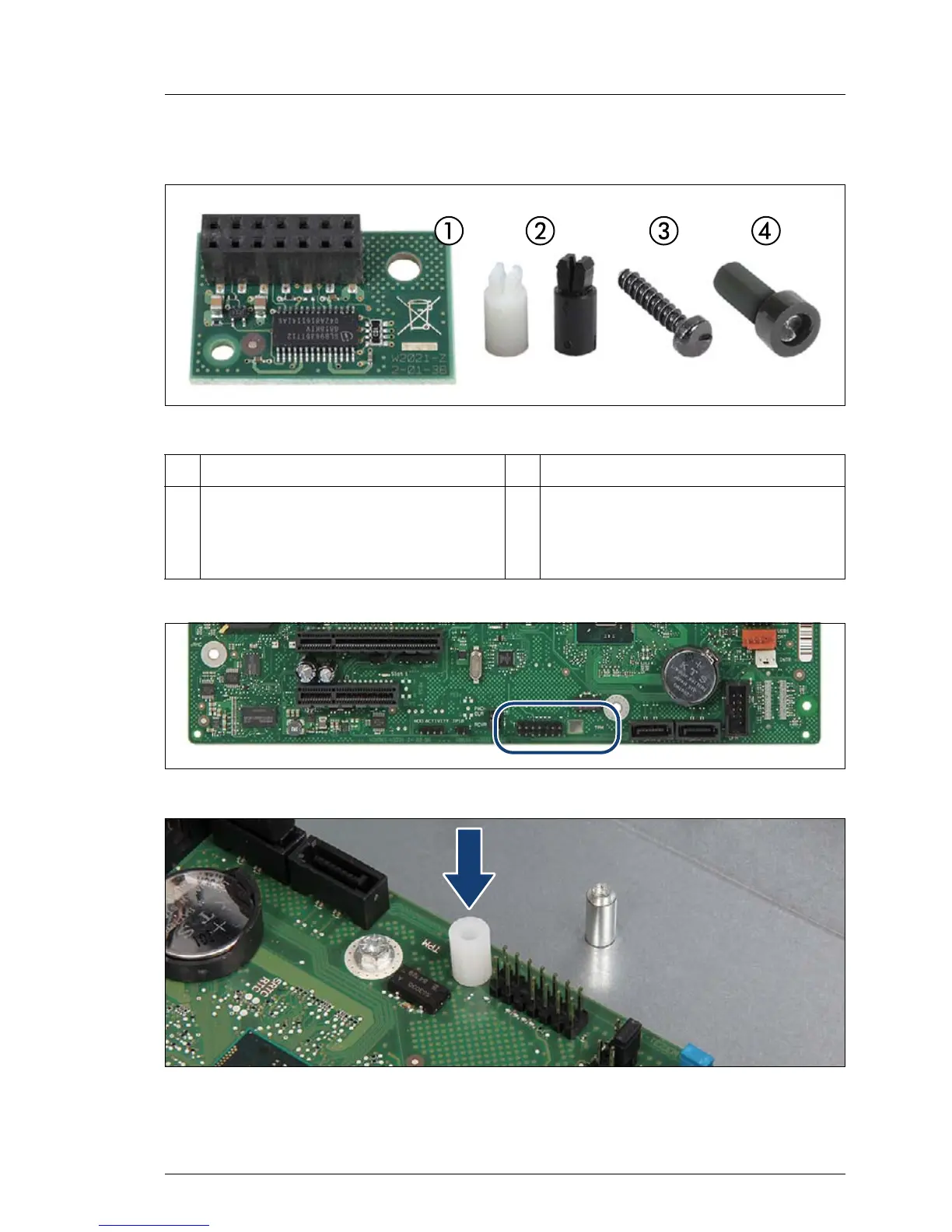

Figure 169: TPM kit
Figure 170: TPM mounting location
Figure 171: Installing the TPM spacer
Ê Snap the TPM spacer into the cut-out in the system board.
1 TPM (Trusted Platform Module) 3 Special screw for TPM
2 TPM spacer
I The black TPM spacer is
not used in this server.
4 TPM bit insert for TPM special
screw
