17.2.1.3 I/O panel connectors

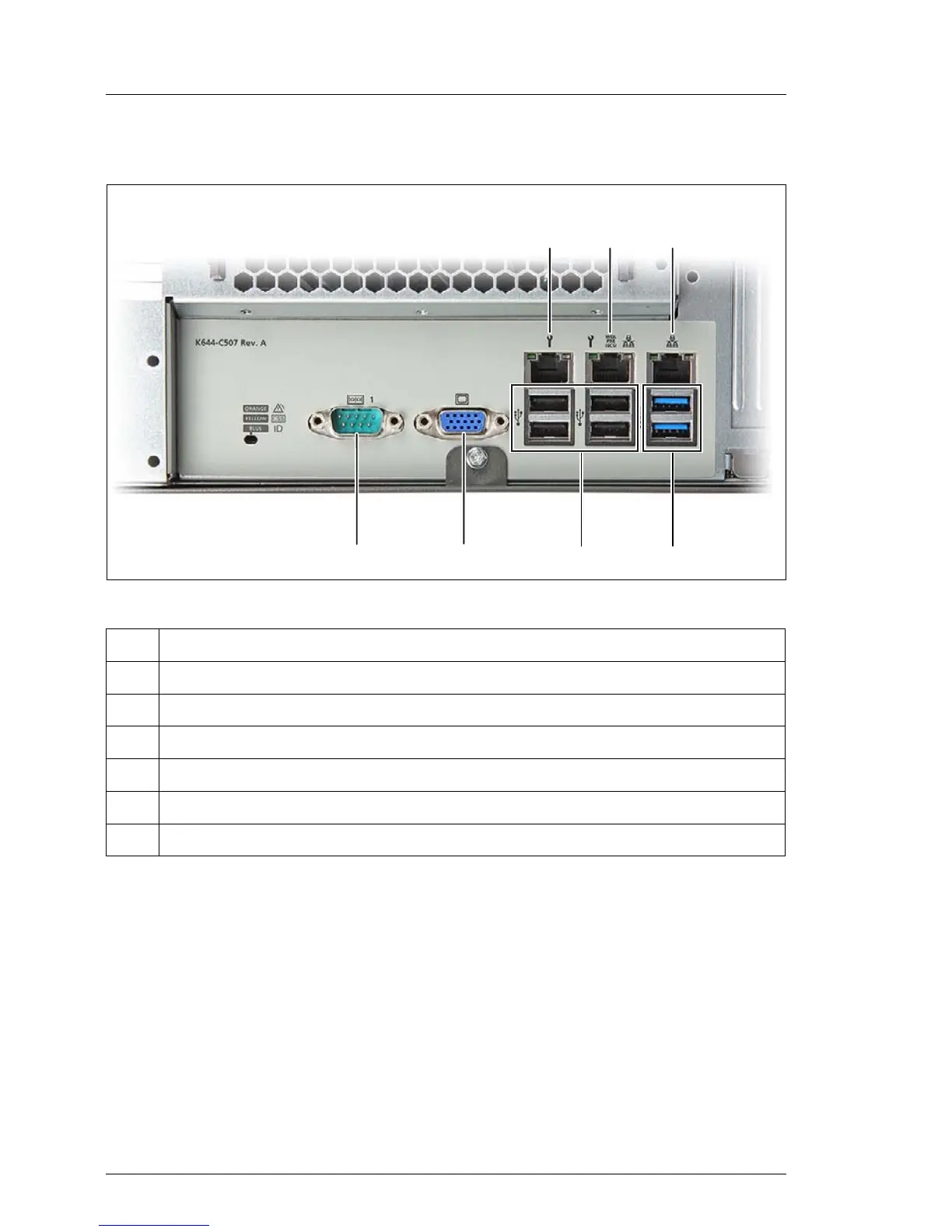

Figure 227: I/O panel connectors
Depending on BIOS settings, the shared LAN connector may also be used as
a management LAN connector. For further information, please refer to the
corresponding BIOS Setup Utility reference manual.
The serial connector COM1 can be used as default interface or to communicate
with the iRMC S4.
1 Management LAN connector, for iRMC S4 server management function
2 Shared LAN connector (LAN1)
3 Standard LAN connector (LAN2)
4 USB 3.0 connectors
5 USB 2.0 connectors
6 Video connector (VGA)
7 Serial connector COM1
햷
햸
햵
햲 햴햳
햶

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
