Fujitsu Server PRIMERGY TX1330 M1 User Manual

160 Upgrade and Maintenance Manual TX1330 M1
Expansion cards and backup units
9.1 Basic information
The system board is equipped with four expansion slots.

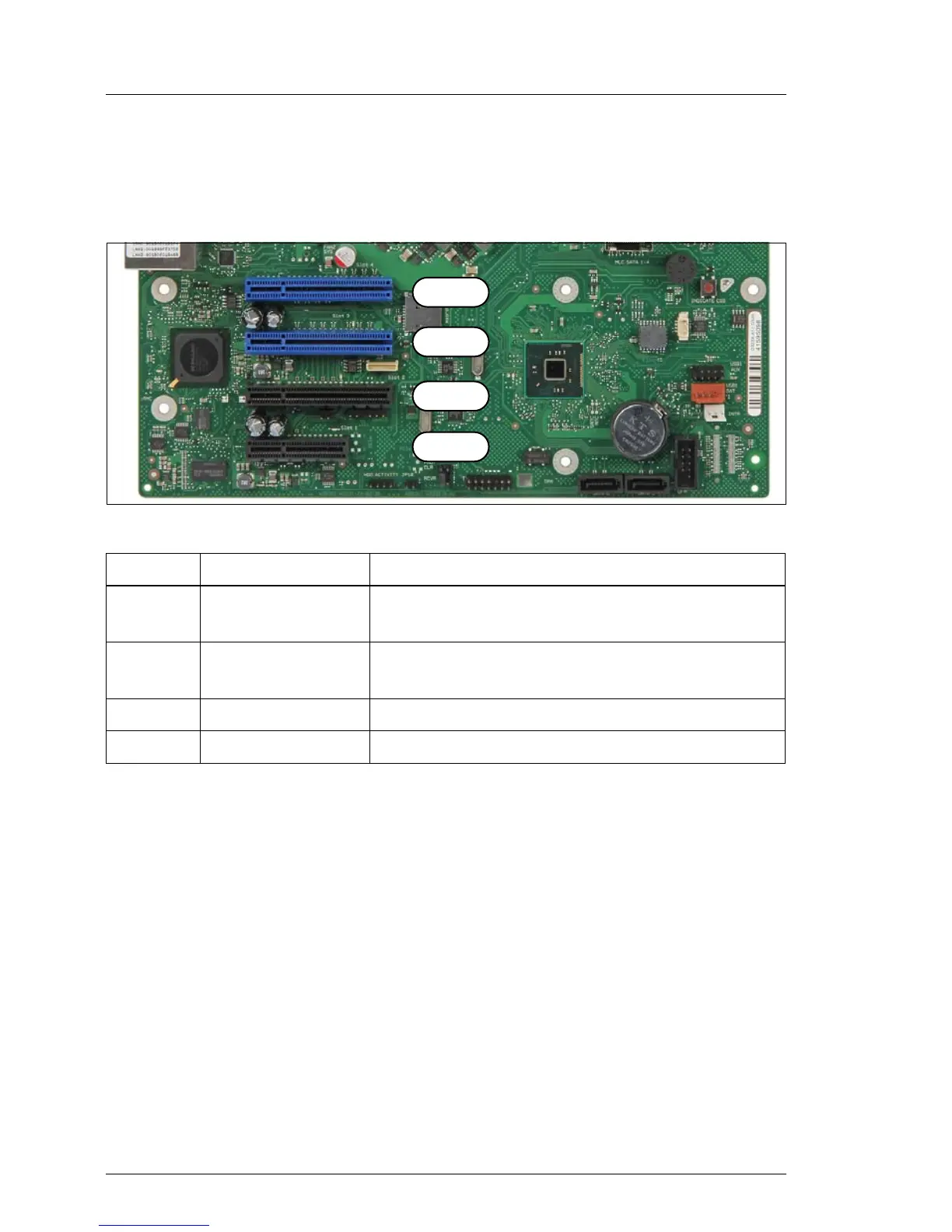

Figure 75: PCI slot overview
I An additional PCI 32-bit slot is available with an optional riser card. This
riser card can be mounted on two spacer bolts positioned under slot 1. In
this case a PCI adapter board occupies slot 1 (see section "Installing the
new riser card" on page 185).
PCI slot Type Function
1
PCe Gen2 x1
(mechanical x4)
slot for optional PCI adapter board (connected
with riser card)
2
PCIe Gen 2 x4
(mechanical x8)
3 PCIe Gen3 x8
4 PCIe Gen3 x8 dedicated slot for boot controllers
slot 4
slot 3
slot 2
slot 1

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
