Hard disk drives / solid state drives
7.3.6.4 Connecting the 3.5-inch HDD SAS backplane

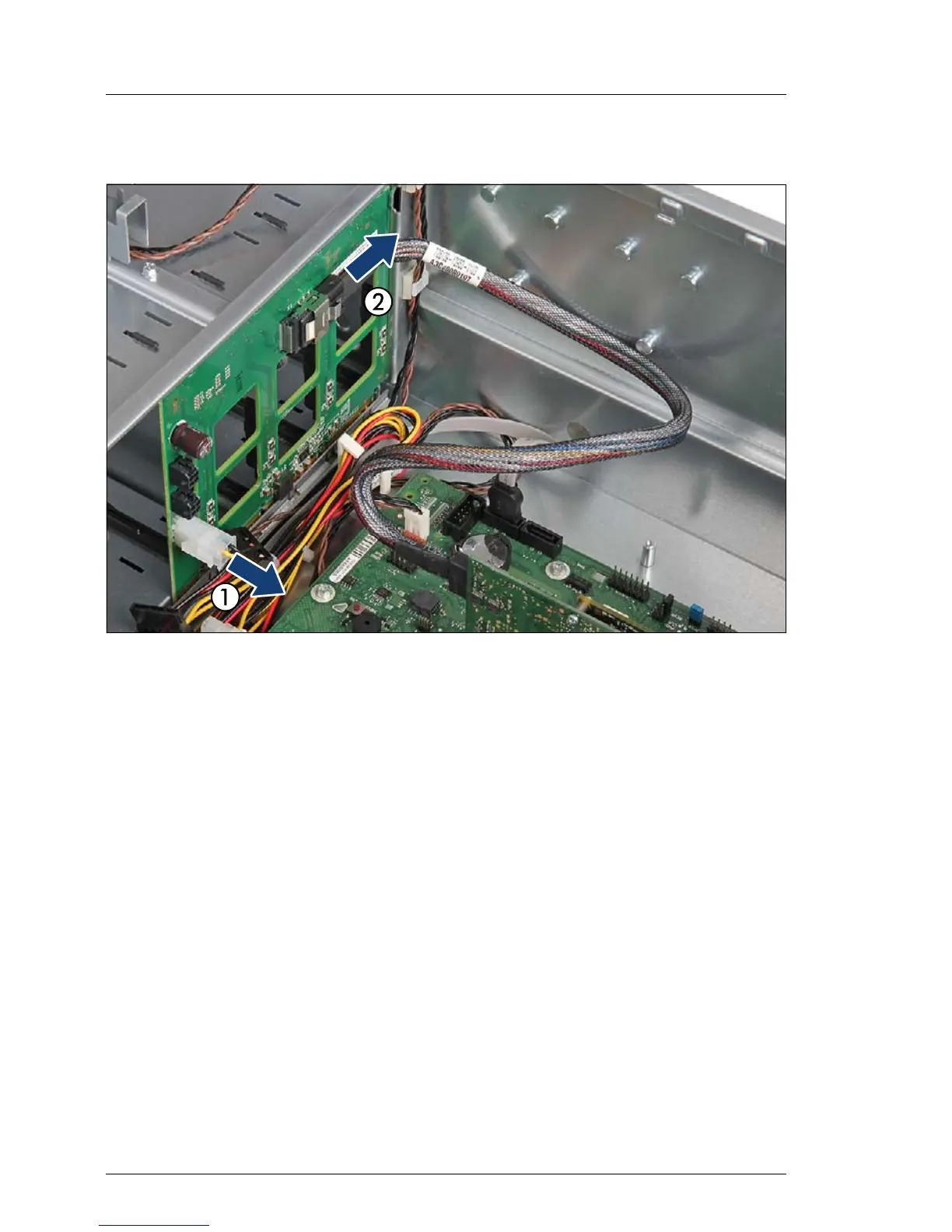

Figure 67: Connecting cables
Ê Connect the cables to the SAS backplane:
– (1) power cable to connector "x7"
– (2) SAS/SATA data cable to connector "x1"
7.3.6.5 Concluding steps
Ê Reinstall all HDD modules to their original drive bays as described in section
"Installing 3.5-inch HDD modules" on page 133.
Ê "Reassembling" on page 58
Ê "Connecting the server to the mains" on page 67
Ê "Switching on the server" on page 68
Ê "Enabling BitLocker functionality" on page 90
