7.3.3.1 Preliminary steps
Ê If applicable, "Removing the HDD bay cover" on page 55
Ê Locate the correct drive bay as described in section "3.5-inch HDD
configurations" on page 133.
7.3.3.2 Removing a 3.5-inch HDD dummy module

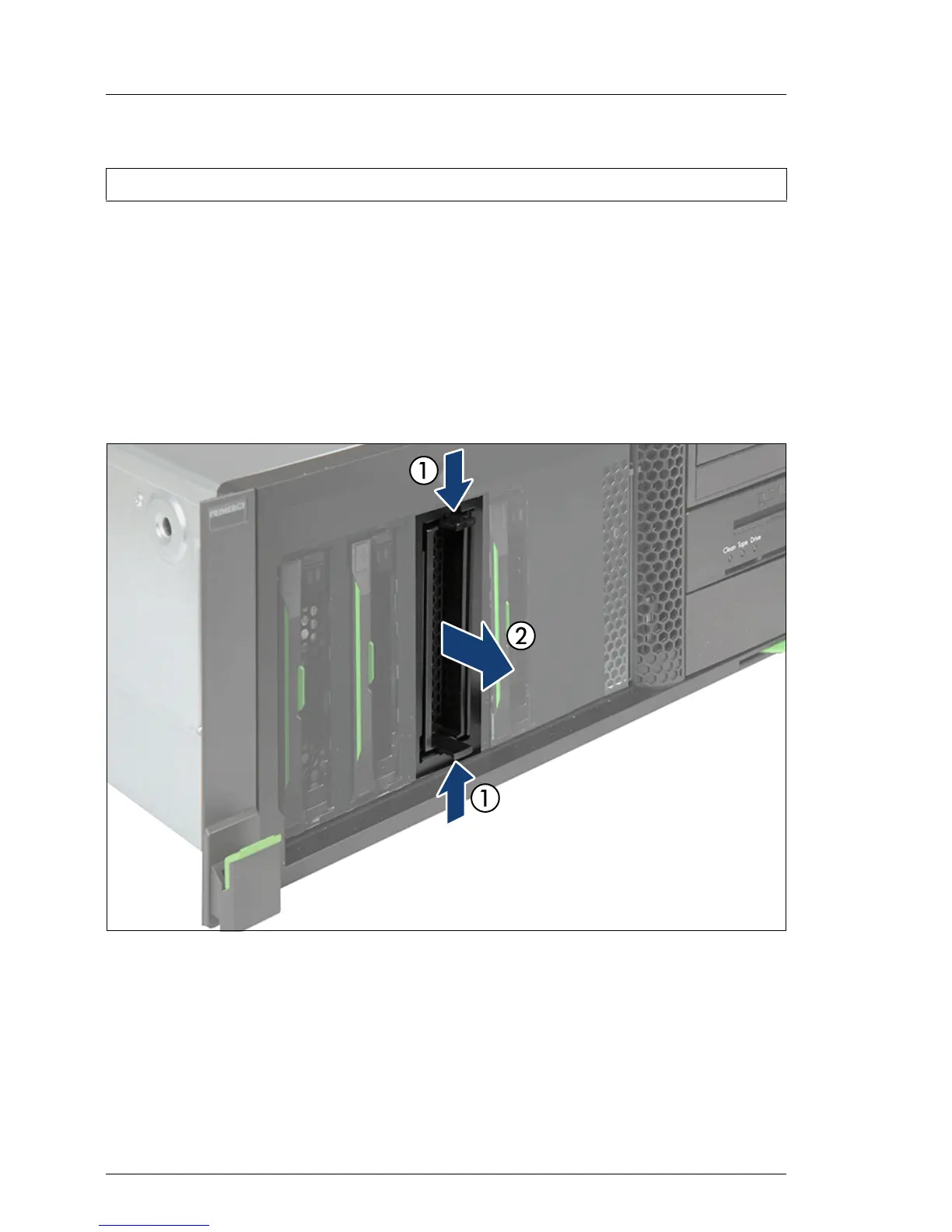

Figure 53: Removing a 3.5-inch dummy module
Ê Press in on the locking tabs on both sides of the dummy module to
disengage the locking mechanism (1).
Ê While keeping the locking tabs pressed, pull the dummy module out of its
bay (2).
Tools: tool-less
