260 Upgrade and Maintenance Manual TX1330 M1
System board and components
14.3.2.2 Removing the UFM

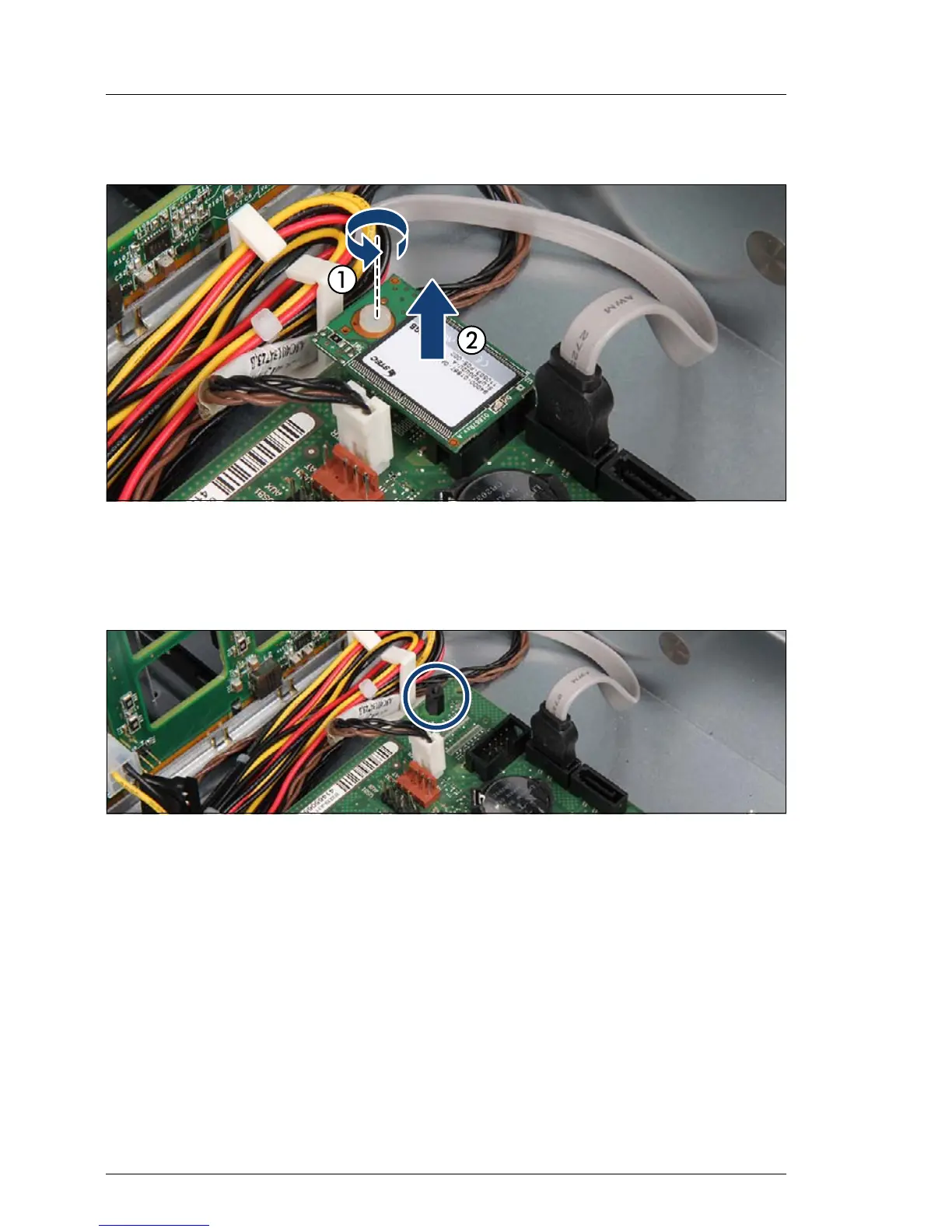

Figure 164: Removing the UFM (A)
Ê Remove the nylon screw (1).
Ê Disconnect and remove the UFM (2).
Figure 165: Removing the UFM (B)
Ê The UFM spacer remains on the system board.
14.3.2.3 Concluding steps
Ê "Reassembling" on page 58
Ê "Connecting the server to the mains" on page 67
Ê "Switching on the server" on page 68
Ê "Enabling BitLocker functionality" on page 90

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
