TX1330 M1 Upgrade and Maintenance Manual 139
Hard disk drives / solid state drives
7.3.4.3 Installing a 3.5-inch HDD dummy module
V CAUTION!
If the removed HDD module is not replaced immediately, always replace
a dummy module into the unused HDD bay to comply with applicable
EMC regulations and satisfy cooling requirements.

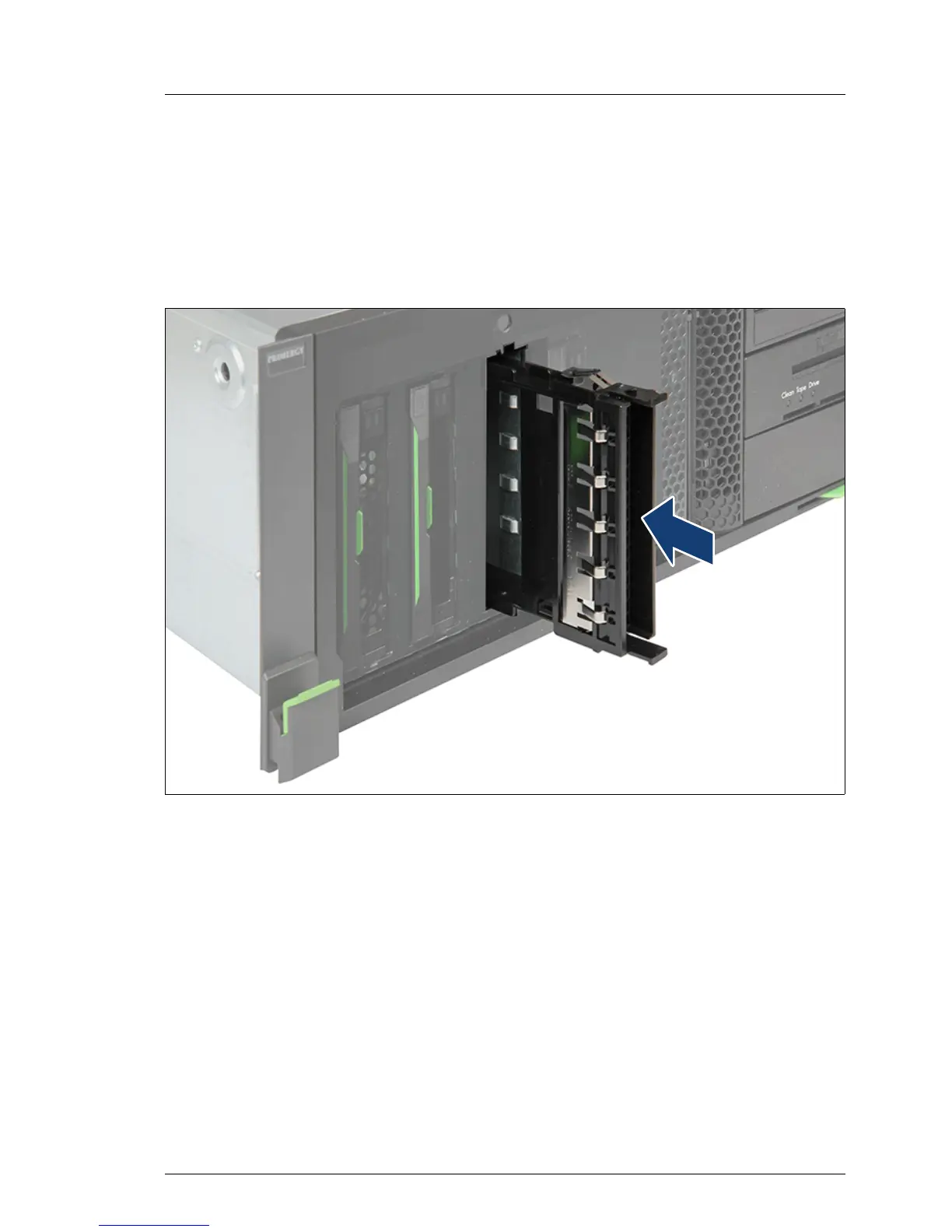

Figure 57: Installing a 3.5-inch HDD dummy module
Ê Slide the dummy module into the drive bay until it locks in place.
7.3.4.4 Concluding steps
Ê If applicable, "Installing the HDD bay cover" on page 64

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
