Fujitsu Server PRIMERGY TX1330 M1 - Diagnostic Indicators; Connectors and Indicators on the Front Panel; Front Panel Controls and Indicators

TX1330 M1 Upgrade and Maintenance Manual 329
Appendix
17.2.2 Connectors and indicators on the front panel
17.2.2.1 Front panel controls and indicators

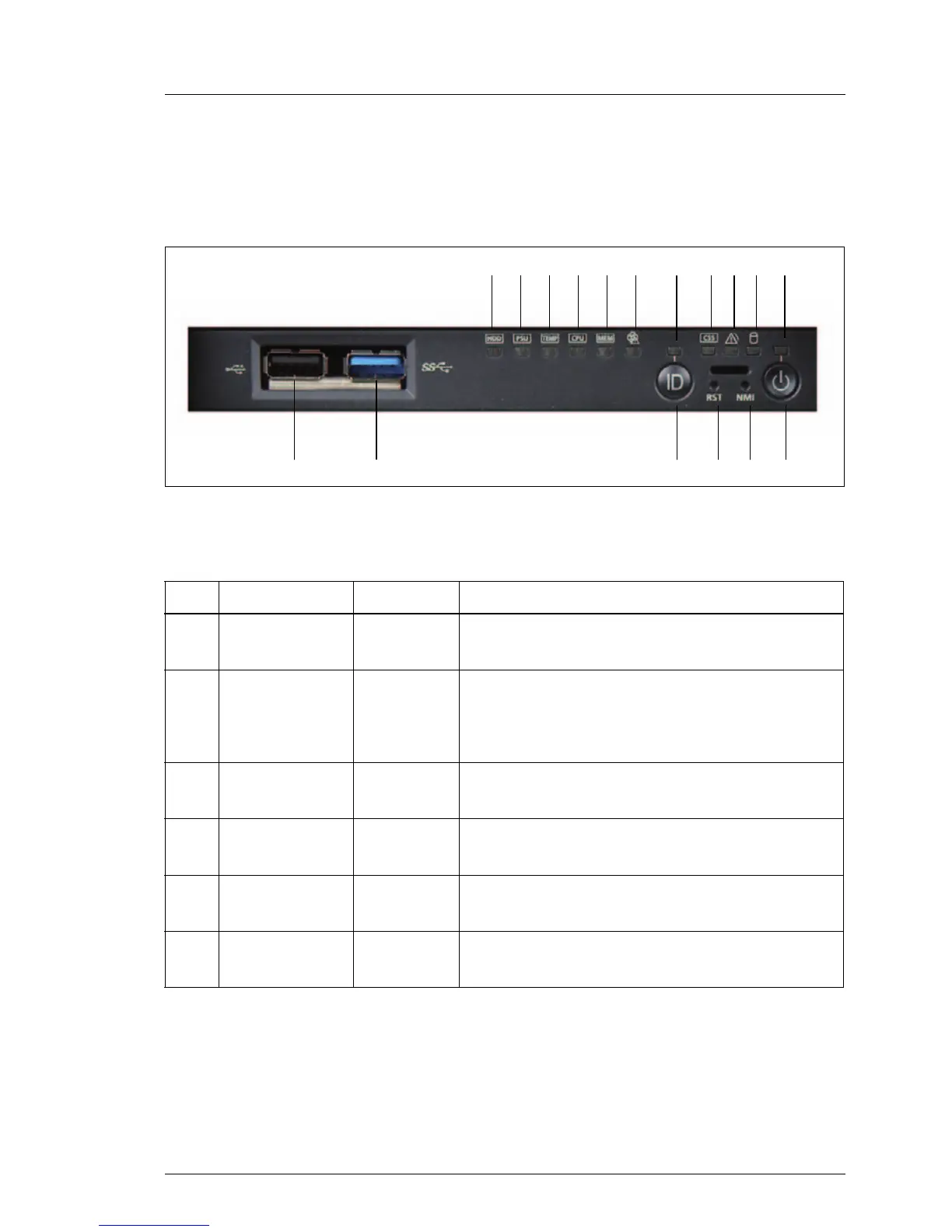

Figure 230: Front panel controls and indicators
Local diagnostic indicators
I In addition to local diagnostic indicators, CSS or Global Error LEDs
indicate, if the defective component is a customer replaceable unit or if a
service technician needs to be dispatched to replace the part.
Pos. Indicator Status Description
1
HDD error
indicator
orange on
HDD / SSD, SAS / SATA backplane or
RAID controller failure detected
2
PSU error
indicator
orange on
Hot-plug power supply unit failure detected
I Only available in redundant PSU
configurations.
3
Temperature
error indicator
orange on
Operating temperature levels above
permitted limits
4
CPU error
indicator
orange on CPU prefailure event detected
5
Memory error
indicator
orange on Memory module failure detected
6
Fan error
indicator
orange on Fan prefailure or failure event detected
⑯⑰
①
⑦
⑥
⑤
④
③
② ⑩⑨
⑧
⑪
⑫⑬⑭⑮
