9.4.2.2 Removing an expansion card
Ê If applicable, disconnect internal cables from the expansion card.
Ê If applicable, remove SFP+ transceiver modules "Removing an SFP+
transceiver module" on page 172.

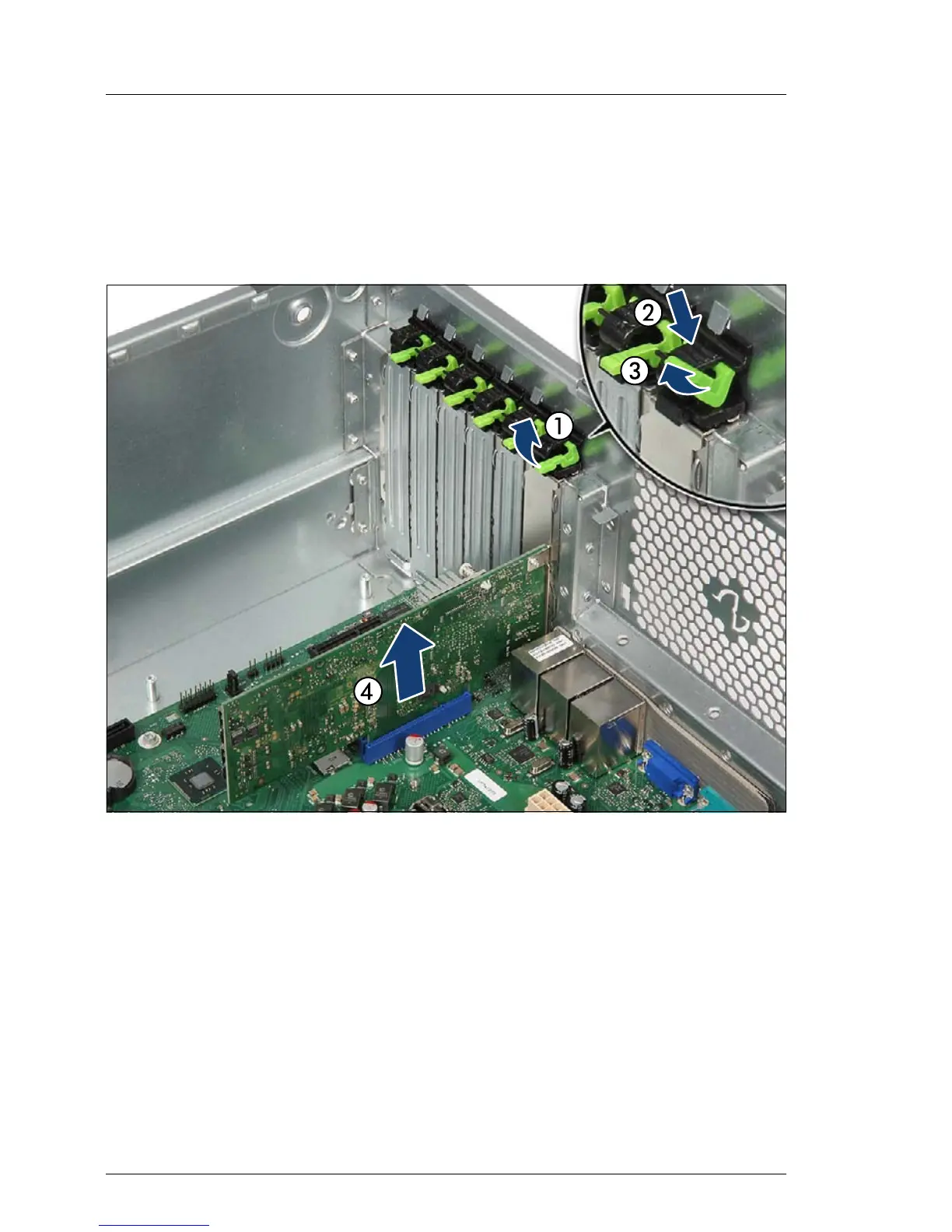

Figure 100: Removing an expansion card
Ê Fold up the locking handle on the slot bracket clamp (1).
Ê Press down on the slot bracket clamp to disengage it (2).
Ê Remove the slot bracket clamp (3).
Ê Carefully pull up on the expansion card in a vertical motion and remove it
from its slot (4).
