7.2.3 Installing 2.5-inch HDD / SSD modules
7.2.3.1 Preliminary steps
Ê If applicable, "Removing the HDD bay cover" on page 55
Ê Locate the correct drive bay as described in section "2.5-inch HDD / SSD
configurations" on page 123.
7.2.3.2 Removing a 2.5-inch HDD / SSD dummy module

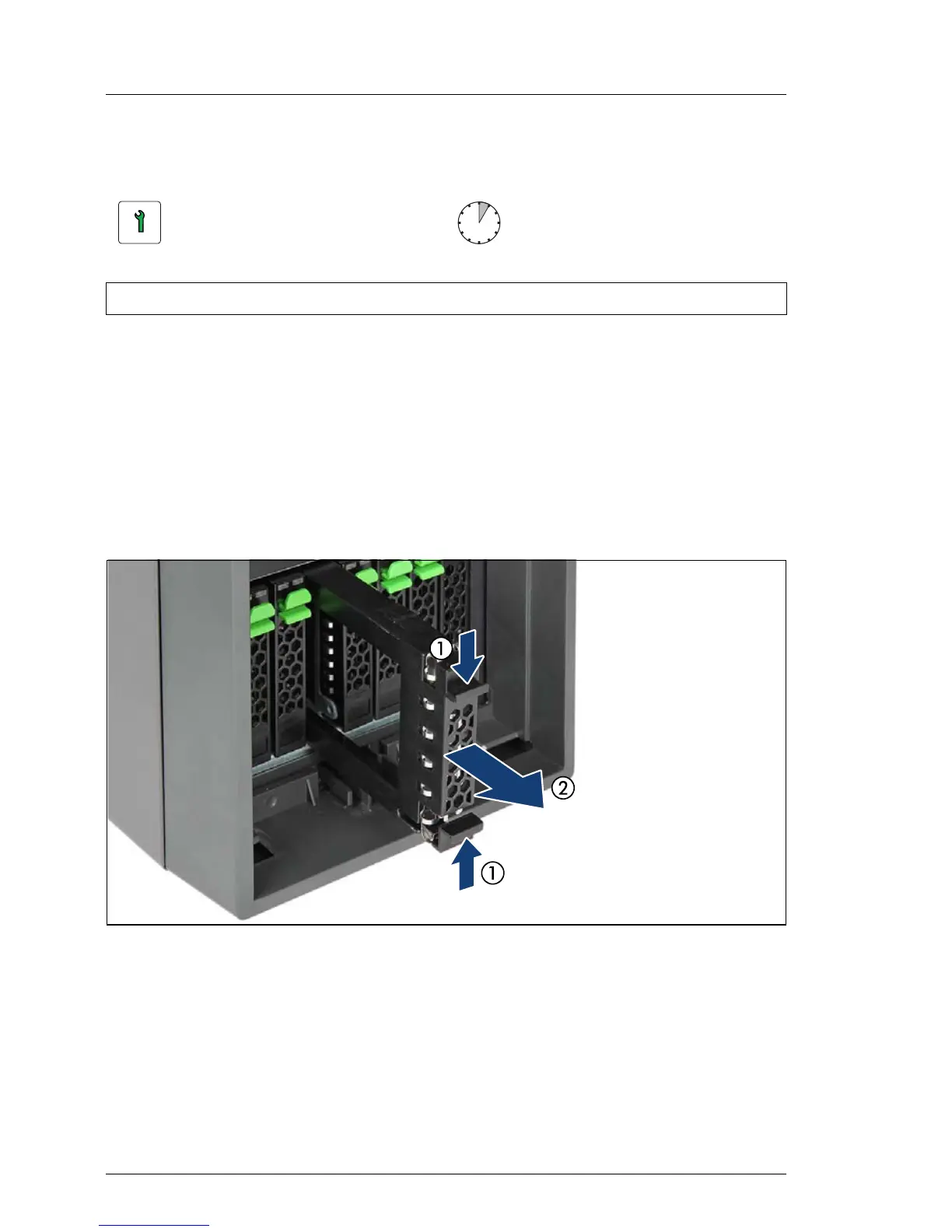

Figure 44: Removing a 2.5-inch dummy module
Ê Press both tabs together (1) and pull the dummy module out of its bay (2).
V CAUTION!
Save the dummy module for future use.
Always replace dummy modules into unused HDD / SSD bays to
comply with applicable EMC regulations and satisfy cooling
requirements.
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
Tools: tool-less
