4.5.2 Tower model
4.5.2.1 Installing the front cover

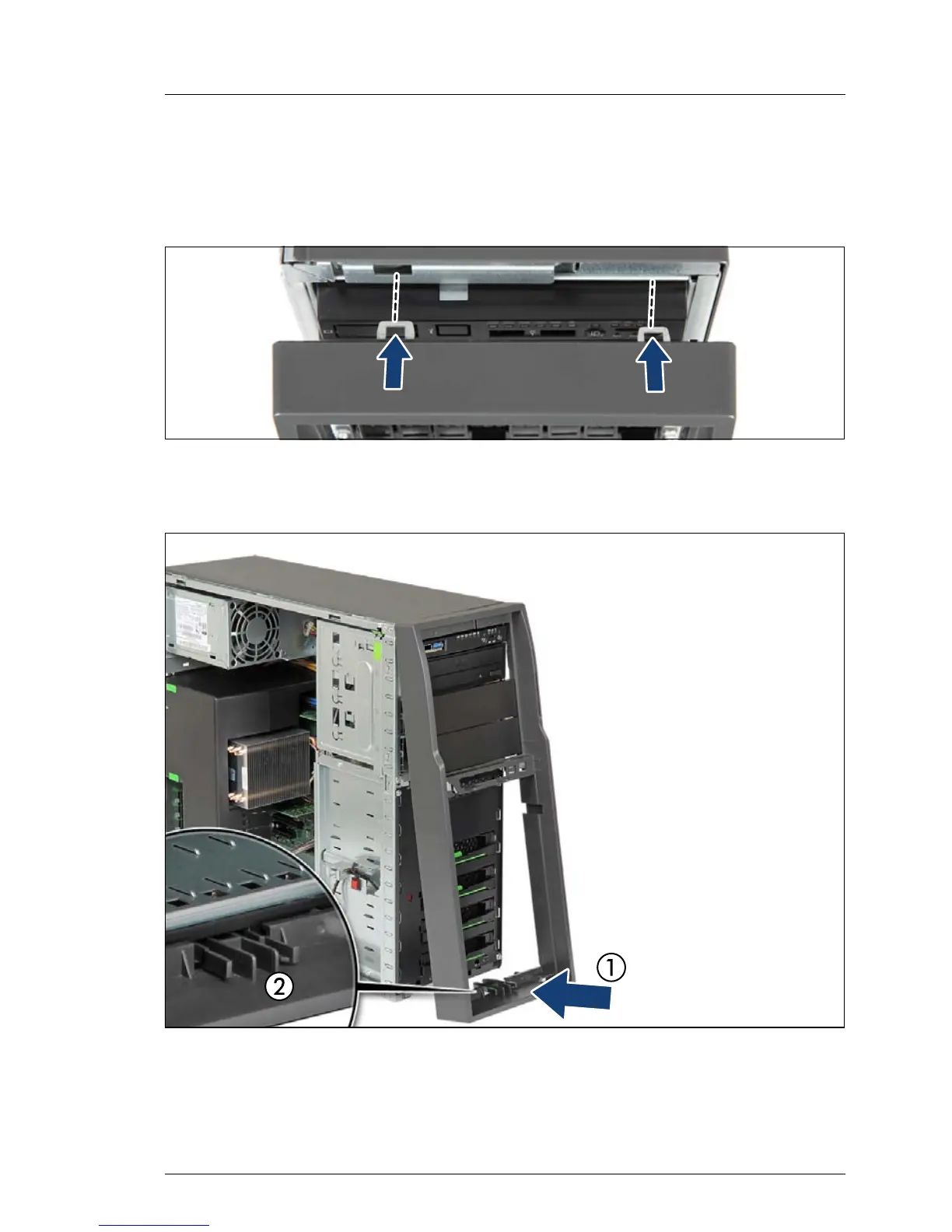

Figure 18: Installing the front cover (tower server) (A)
Ê Hook the two tabs of the front cover into the notches in the chassis.
Figure 19: Installing the front cover (tower server) (B)
Ê Fold down the front cover (1) until the locking clip on the bottom edge
engage (2).
