9.5.2.2 Installing TFM to the RAID controller (if applicable)

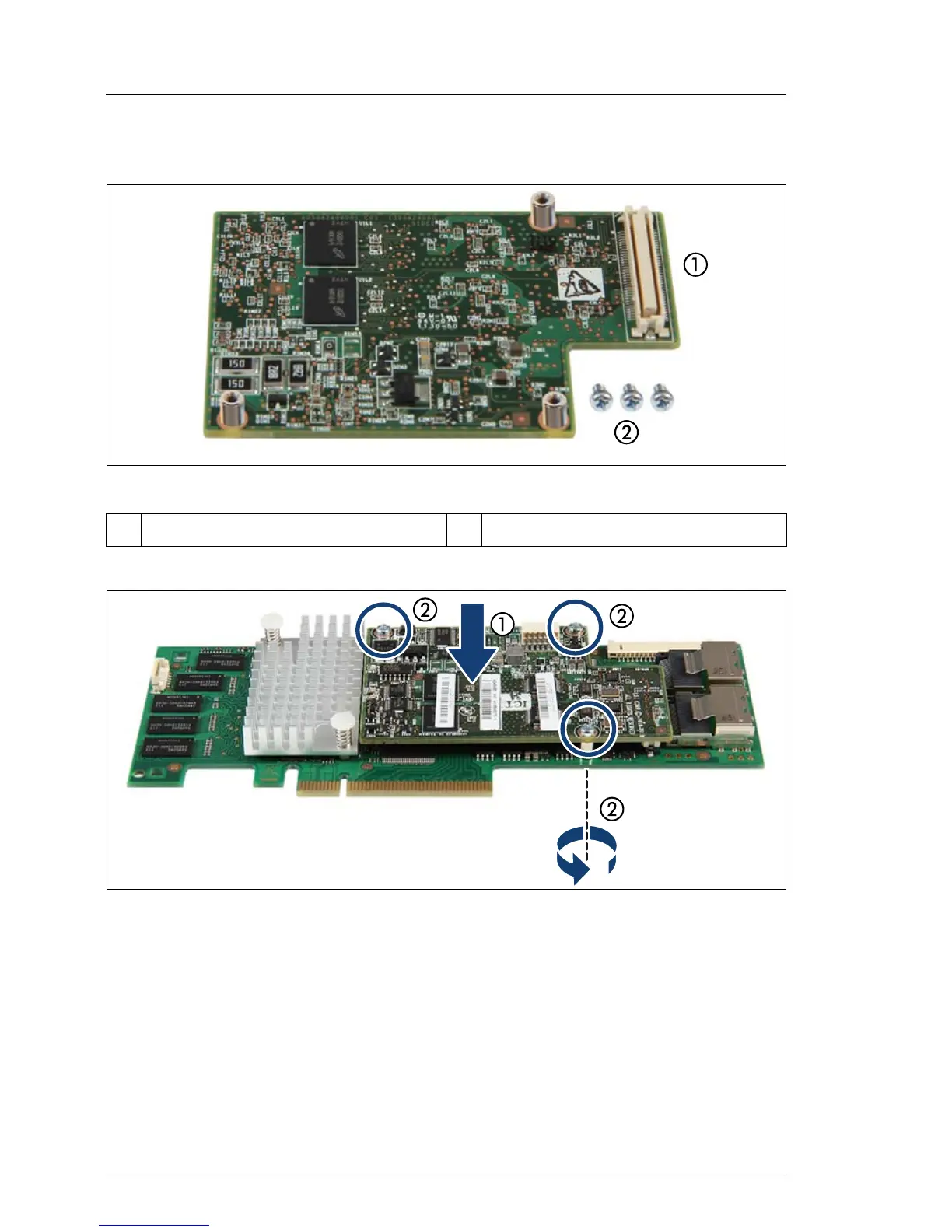

Figure 106: TFM kit
Figure 107: Installing TFM
Ê Fit the spacer bolts of the TFM on the RAID controller (1).
Ê Secure the TFM on the RAID controller with the three screws (2).
1TFM 2Screws
