Fujitsu Server PRIMERGY TX1330 M1 User Manual

TX1330 M1 Upgrade and Maintenance Manual 131
Hard disk drives / solid state drives
7.2.6.2 Removing the defective 2.5-inch HDD SAS / SATA backplane

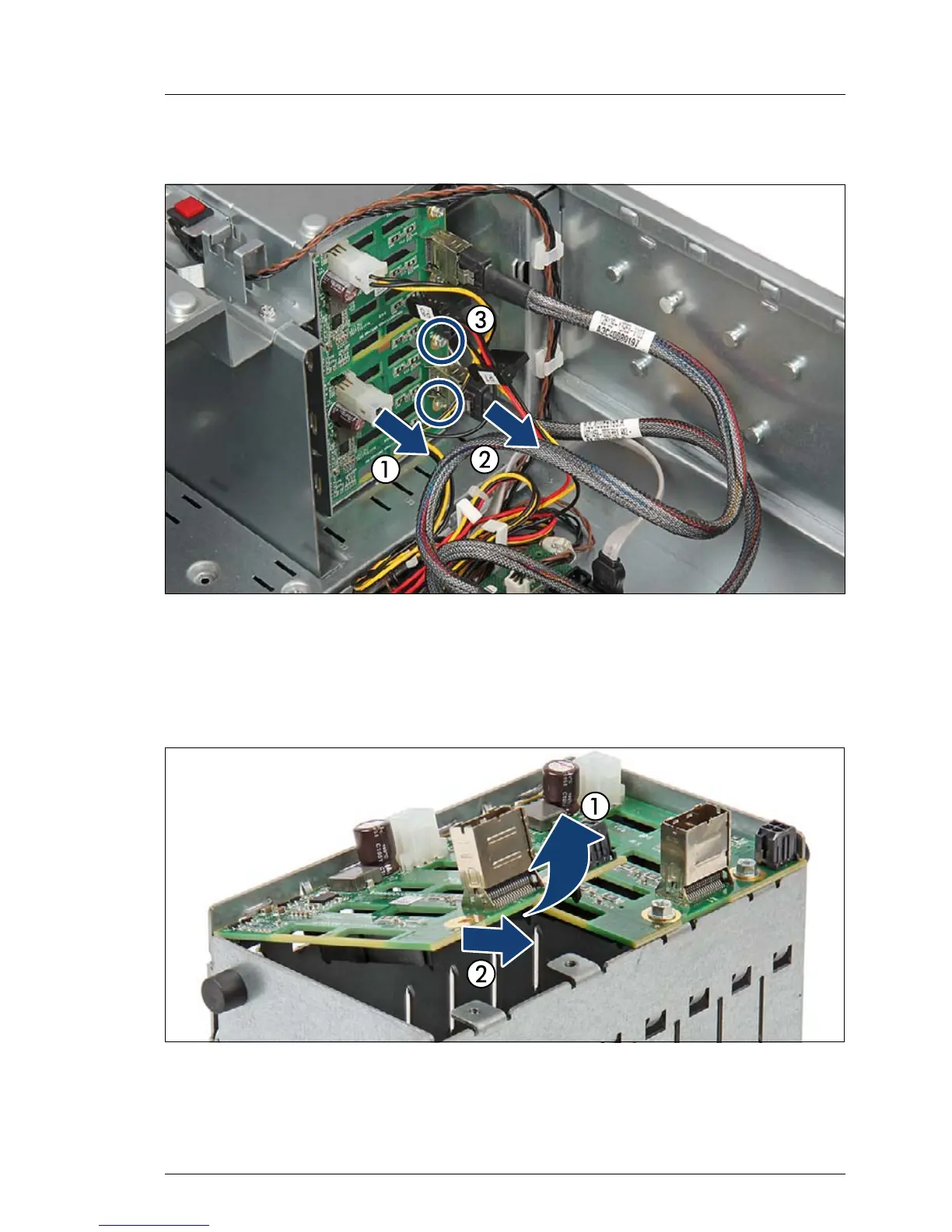

Figure 49: Disconnecting cables
Ê Disconnect the power cable (1) and the SAS / SATA cable (2) from the
desired SAS / SATA backplane.
Ê Remove the two screws (3, see circles).
Figure 50: Removing the SAS / SATA backplane
Ê Lift up the SAS / SATA backplane (1) and at a slight angle, remove it from
the guides on the HDD cage (2).
