TX1330 M1
Upgrade and Maintenance Manual 239
Accessible drives
12.2.5.1 Cabling of RDX drive

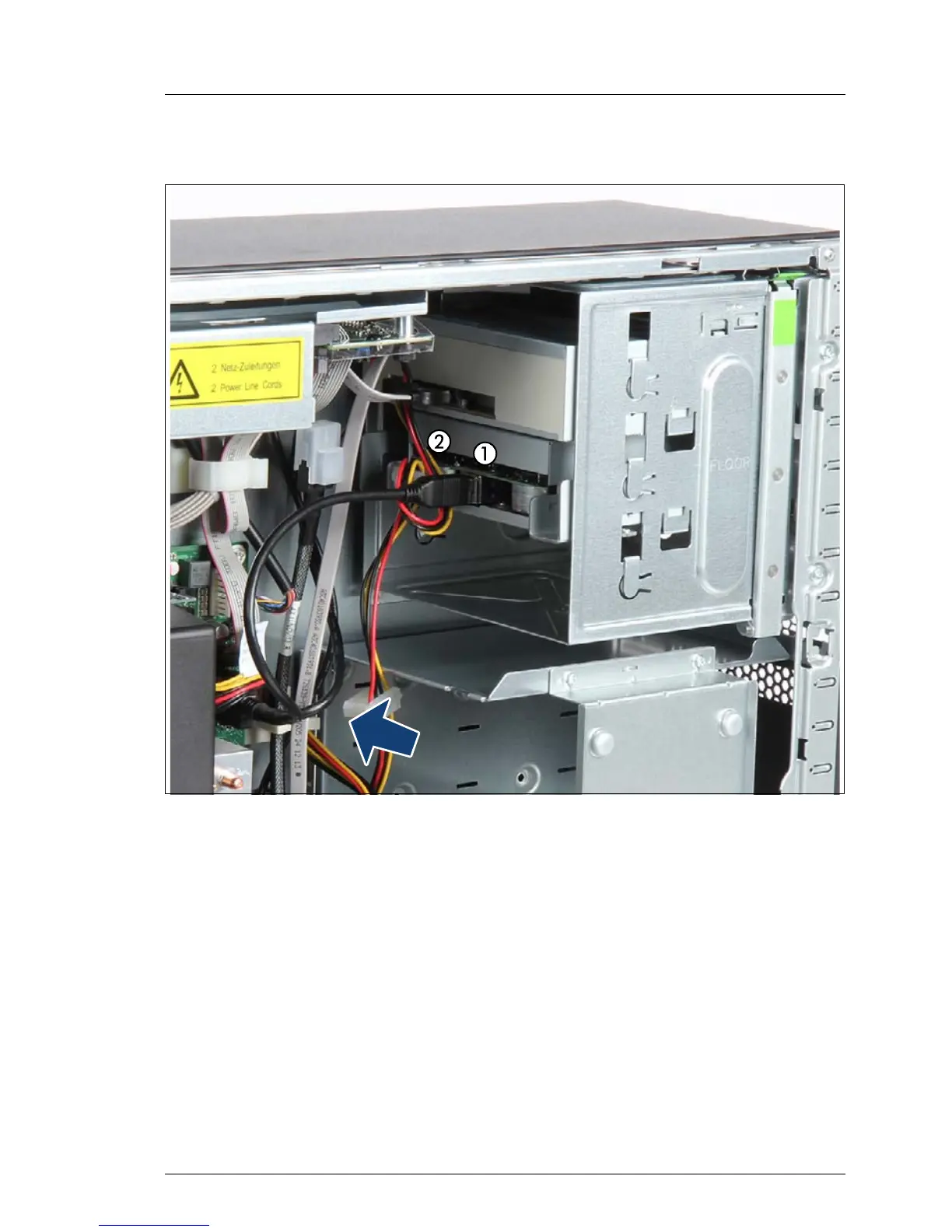

Figure 149: Cabling of RDX backup drive
Ê Connect the connector on the RDX drive to the USB 3.0 cable of the front
panel (1).
Ê Connect the connector P1 to system board connector SATA POWER (2).
Ê Run the cables through the cable guide as shown (see arrow).
