12.2.3 Installing mounting brackets to RDX and DAT
backup drives (if applicable)
This section is not applied for Japanese market.
Backup drive mounting brackets are contained in mounting kit S26361-F3753-
E1 (to be ordered separately with the backup drive).
I No new mounting brackets are available when replacing a backup drive
during service.
Ê If applicable, remove existing mounting brackets from the backup drive.

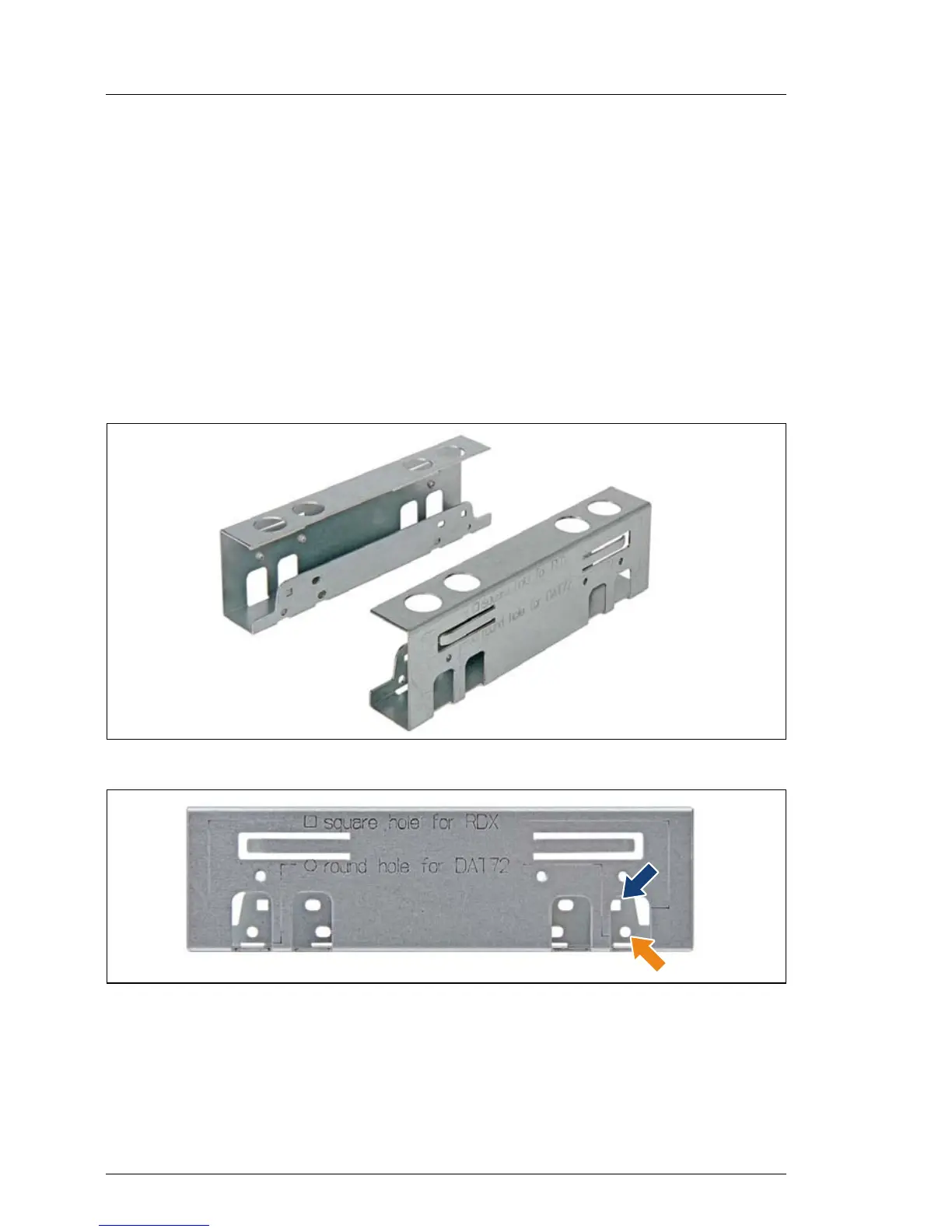

Figure 140: Backup drive mounting brackets
Figure 141: Screw holes on backup drive mounting brackets
Ê Note the screw hole description stamped onto the mounting bracket:
Ê Use the square screw hole for RDX backup drives (see blue arrow).
Ê Use the round screw holes for DAT72 backup drives (see orange arrow).
