TX1330 M1 Upgrade and Maintenance Manual 233
Accessible drives
Removing accessible drive covers

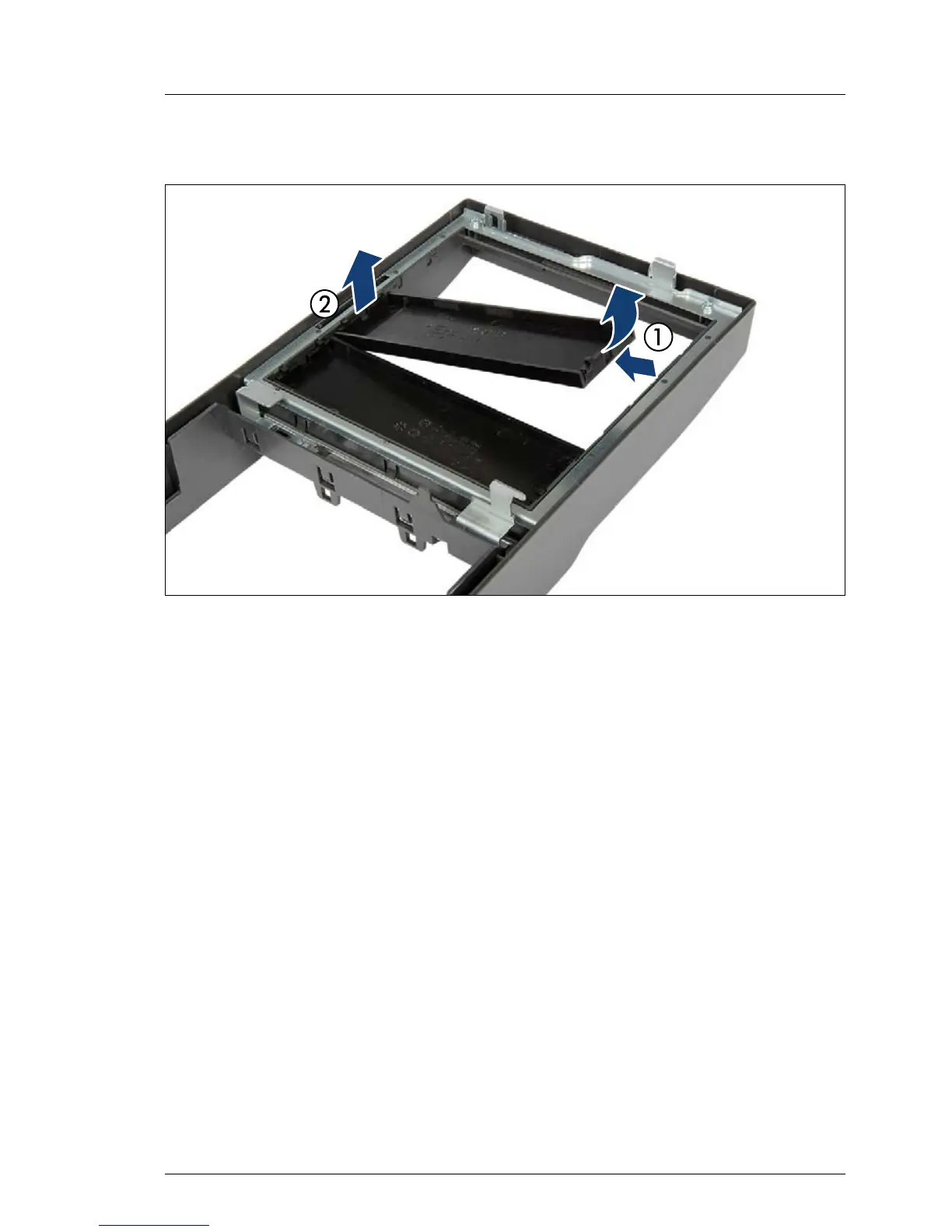

Figure 139: Removing an accessible drive covers
I Removing accessible drive covers is illustrated by the example of the
tower server. In case of the rack front cover, the procedure is identical.
Ê Turn the front cover face down.
Ê Press in on the lugs on either side of the drive cover.
Ê Fold up (1) and remove the desired accessible drive covers (2).

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
