System fan and air duct
8.2 Handling the fan module
8.2.1 Preliminary steps
Ê "Shutting down the server" on page 46
Ê "Disconnecting the server from the mains" on page 46
Ê "Getting access to the component" on page 47
8.2.2 Removing the fan module

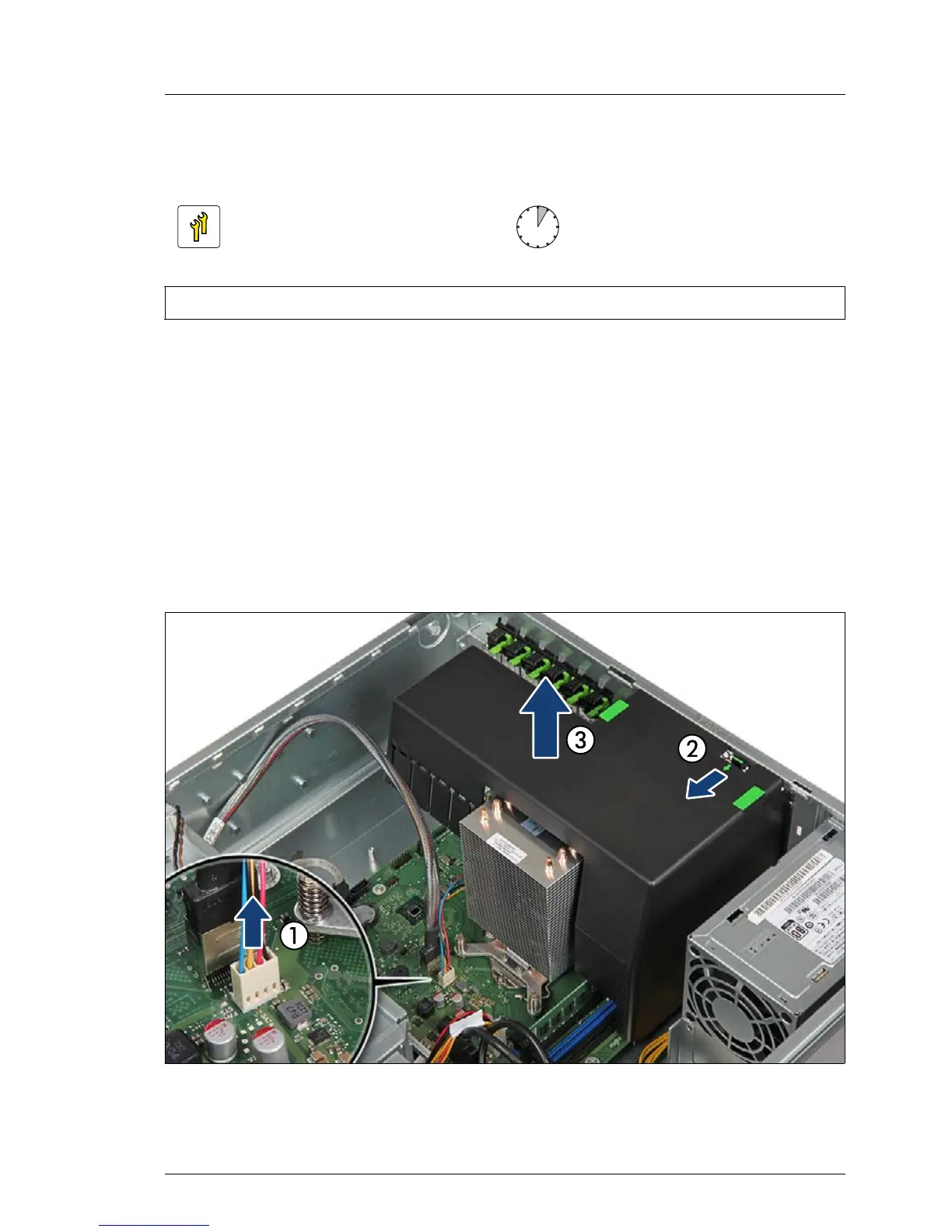

Figure 69: Removing the fan module
Ê Disconnect the fan cable from system board connector "FAN1 SYS" (1).
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
