Fujitsu Server PRIMERGY TX1330 M1 User Manual

TX1330 M1 Upgrade and Maintenance Manual 281
System board and components
Ê Verify the settings on the new system board (see section "Onboard settings"
on page 333).
14.5.4 Swapping the processor

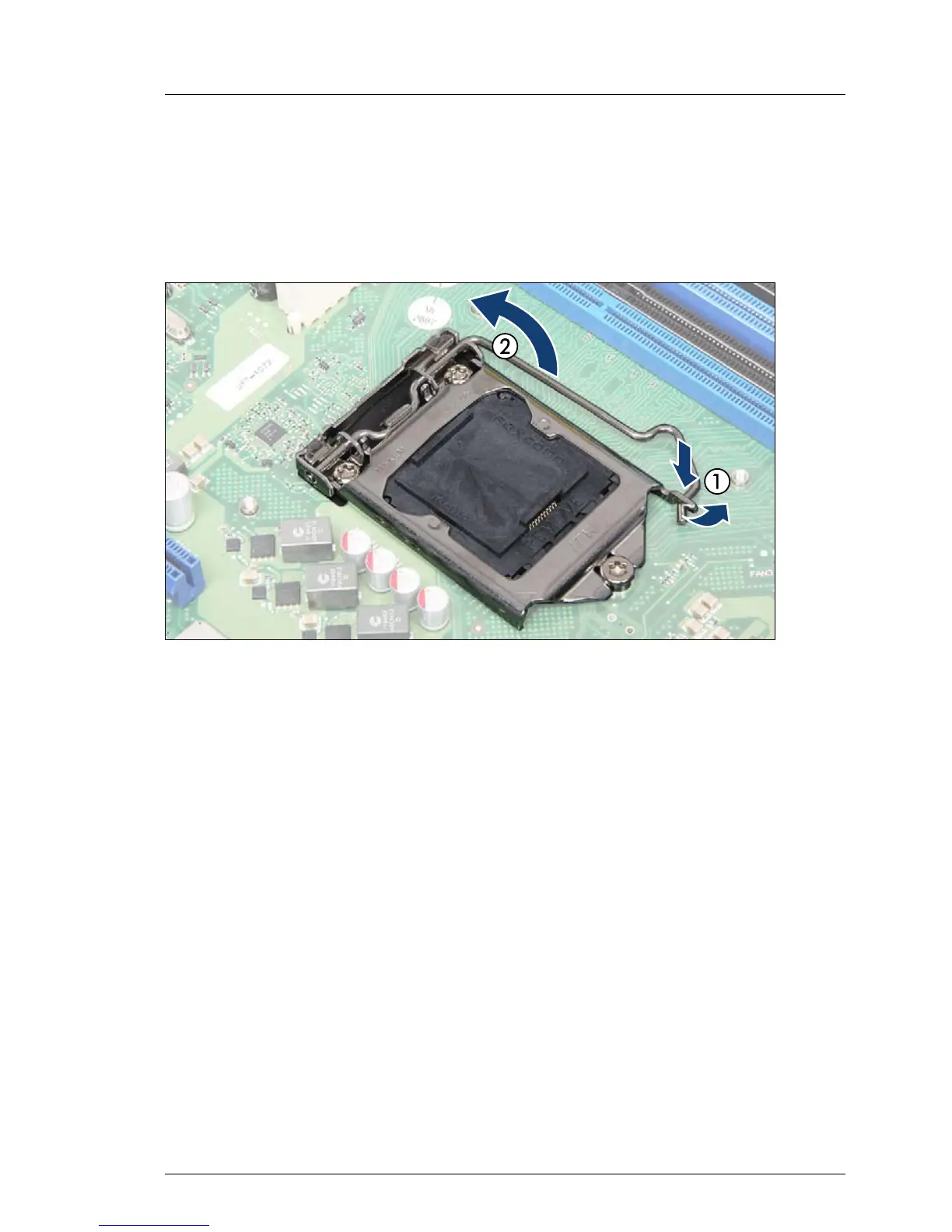

Figure 184: Unlatching the socket lever (new system board)
Ê Unlatch the socket lever on the new system board by pushing it down and
away from the socket (1).
Ê Fold back the socket lever to disengage the load plate (2).
Ê Rotate the socket lever to lift the load plate.
Ê Make sure that the load plate is in the fully open position.

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
