Fujitsu Server PRIMERGY TX1330 M1 User Manual

TX1330 M1 Upgrade and Maintenance Manual 107
Power supply
6.3.1.2 Removing the dummy cover

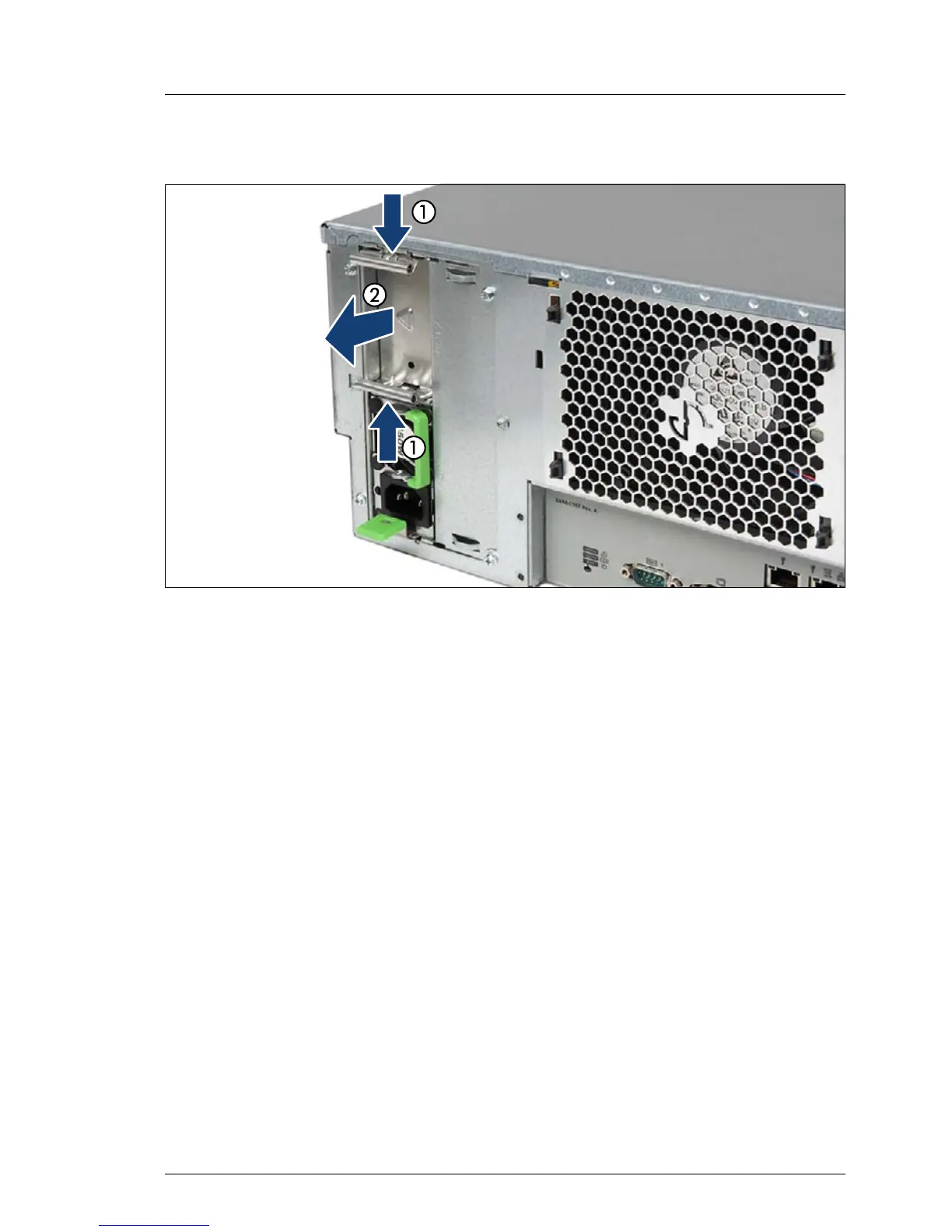

Figure 34: Removing the dummy cover
Ê Press in on both release latches (1) and remove the dummy cover (2).
V CAUTION!
Keep the dummy cover for future use. If a power supply unit is removed
and not immediately replaced by a new one, a dummy cover must be
reinstalled in the bay to comply with applicable EMC regulations and
satisfy cooling requirements.

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
