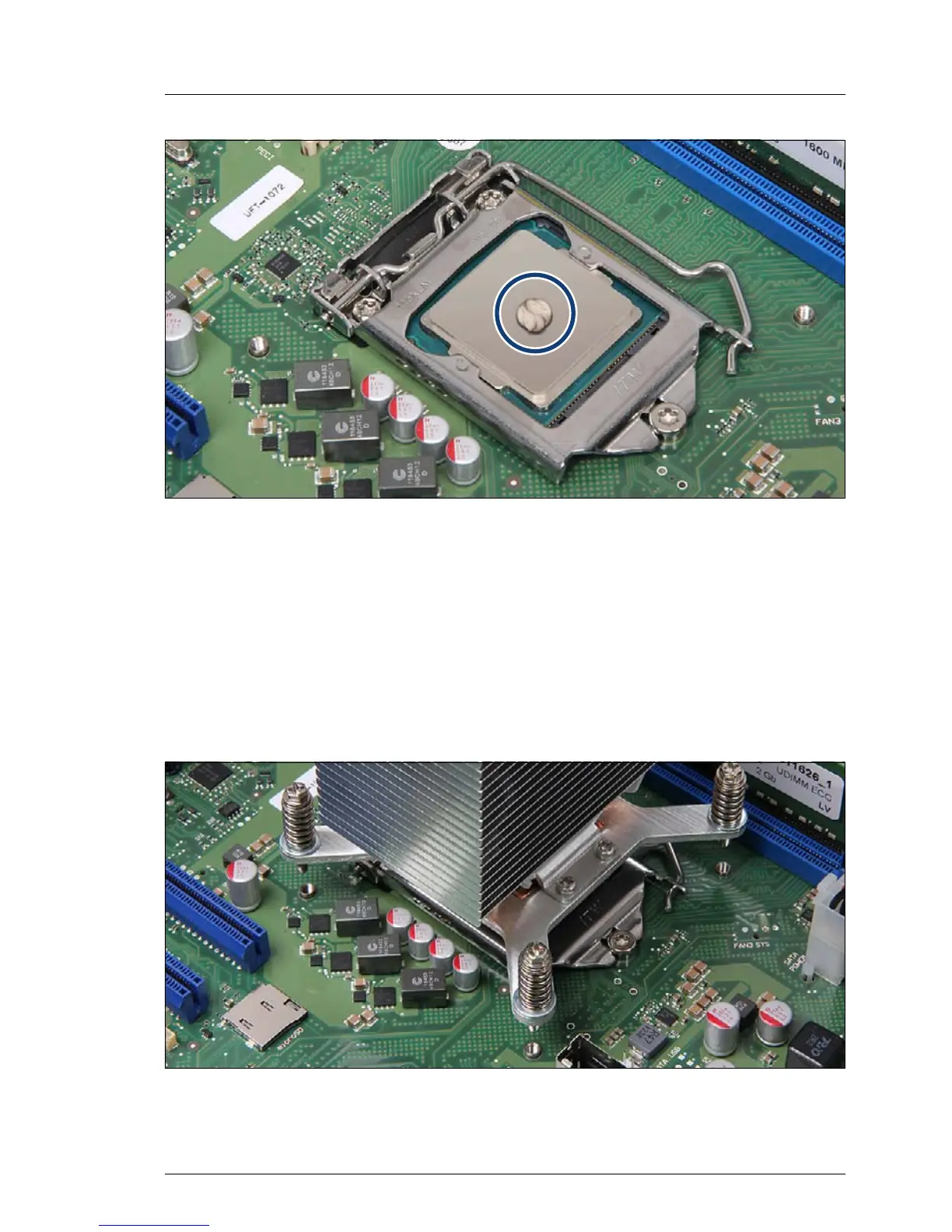

Figure 133: Applying thermal paste
Ê Apply a small point-shaped amount of thermal paste (1.0 gram, see
description above) to the center of the processor surface as shown.
V CAUTION!
Do not mix different types of thermal paste.
11.2.6 Installing the processor heat sink
Figure 134: Installing the heat sink (A)
Ê Carefully seat the heat sink on the four threaded holes as shown.
