Fujitsu Server PRIMERGY TX1330 M1 User Manual

TX1330 M1 Upgrade and Maintenance Manual 219
Processors
11.2.2 Removing the processor heat sink

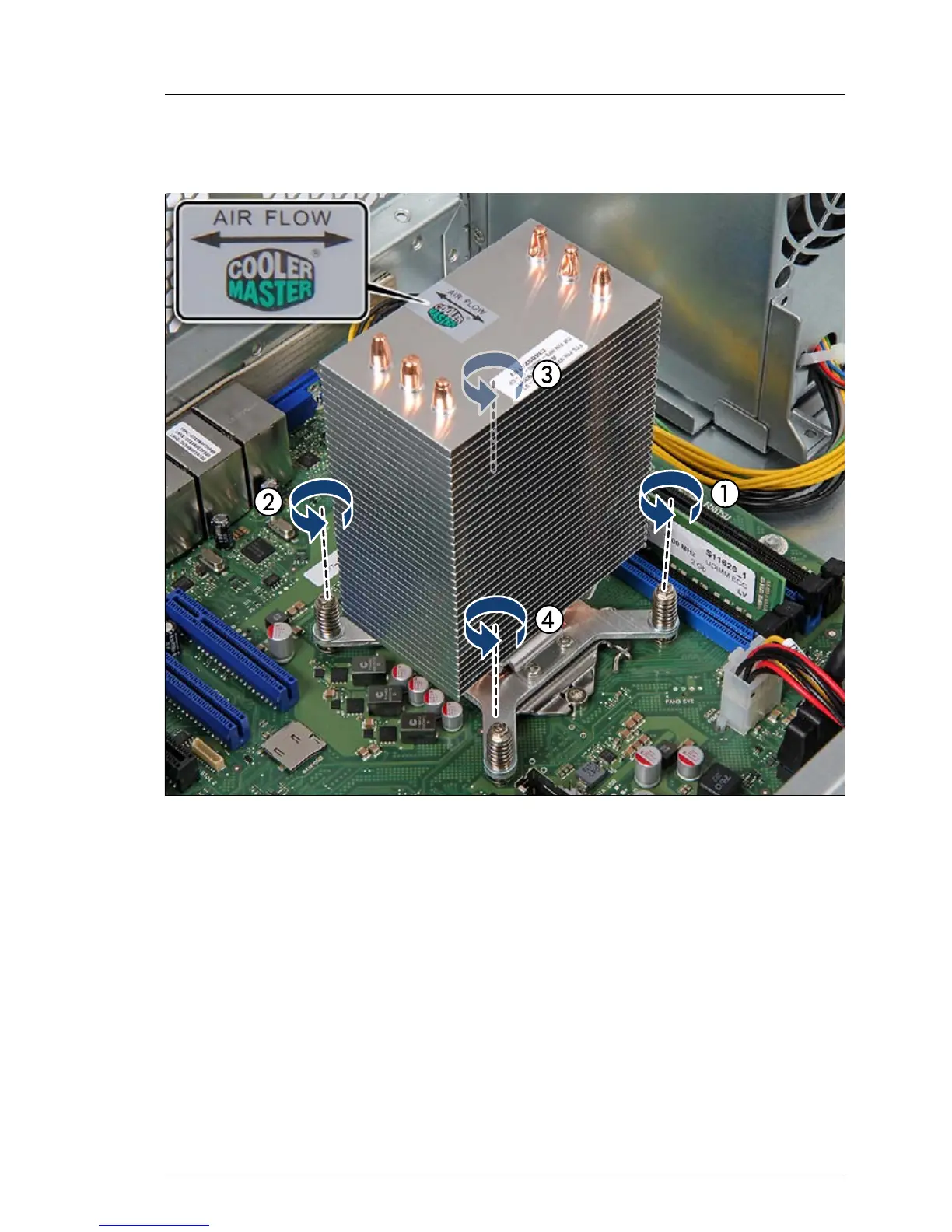

Figure 125: Removing the processor heat sink
Ê Loosen the four captive screws on the heat sink in a crossover pattern (1-4).
Ê Carefully turn the heat sink back and forth to detach it from the processor.
This may be necessary due to the adhesive quality of the thermal paste
located between the heat sink and processor.
V CAUTION!
Pay special attention not to damage any system board components
surrounding the processor socket.
Ê Lift the heat sink out of the chassis.
Ê Thoroughly clean residual thermal paste from the surface of the heat sink
and the processor using a lint-free cloth.
