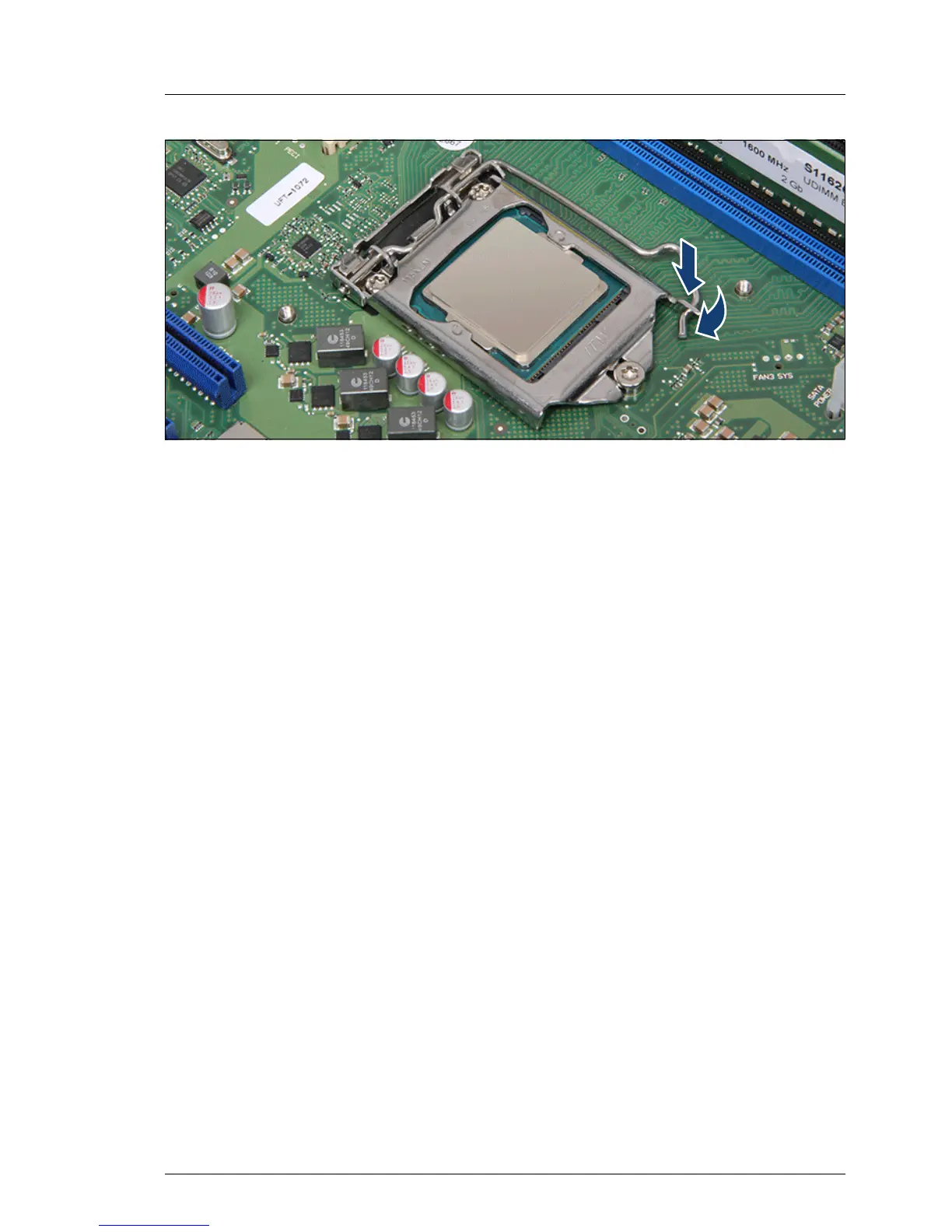

Figure 131: Latching the socket lever
Ê Latch the socket lever under the load plate tab.
11.2.5 Applying thermal paste
I For the Japanese market, the service engineer must follow the
instruction provided separately.
I If the processor upgrade or replacement kit contains a new CPU heat
sink, a thin layer of thermal compound has already been pre-applied to
its lower surface. In this case, please proceed with section "Installing the
processor heat sink" on page 225.
