Fujitsu Server PRIMERGY TX1330 M1 User Manual

TX1330 M1 Upgrade and Maintenance Manual 205
Expansion cards and backup units

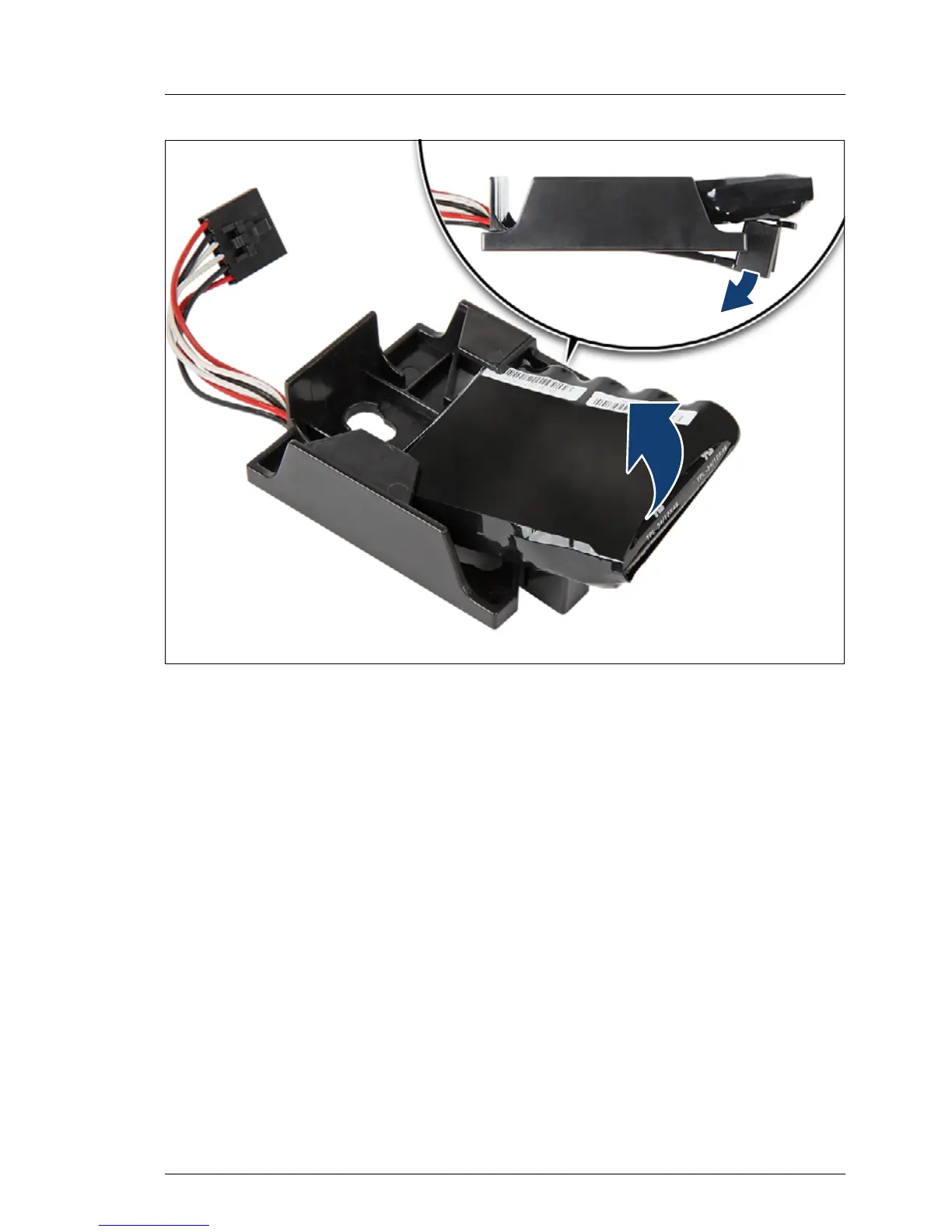

Figure 119: Removing the FBU from the holder
Ê At a slight angle, slide the FBU from under the retaining brackets of the
holder and remove it.
9.5.6.3 Installing the new FBU
Ê Install the FBU as described in section "Installing an FBU" on page 189.
9.5.6.4 Concluding steps
Ê "Installing the fan module" on page 152
Ê "Reassembling" on page 58
Ê "Connecting the server to the mains" on page 67
Ê "Switching on the server" on page 68
Ê If applicable, "Updating RAID controller firmware" on page 80
Ê "Enabling SVOM boot watchdog functionality" on page 84

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
