Fujitsu Server PRIMERGY TX1330 M1 User Manual

TX1330 M1 Upgrade and Maintenance Manual 125
Hard disk drives / solid state drives
7.2.3.3 Installing a 2.5-inch HDD / SSD module

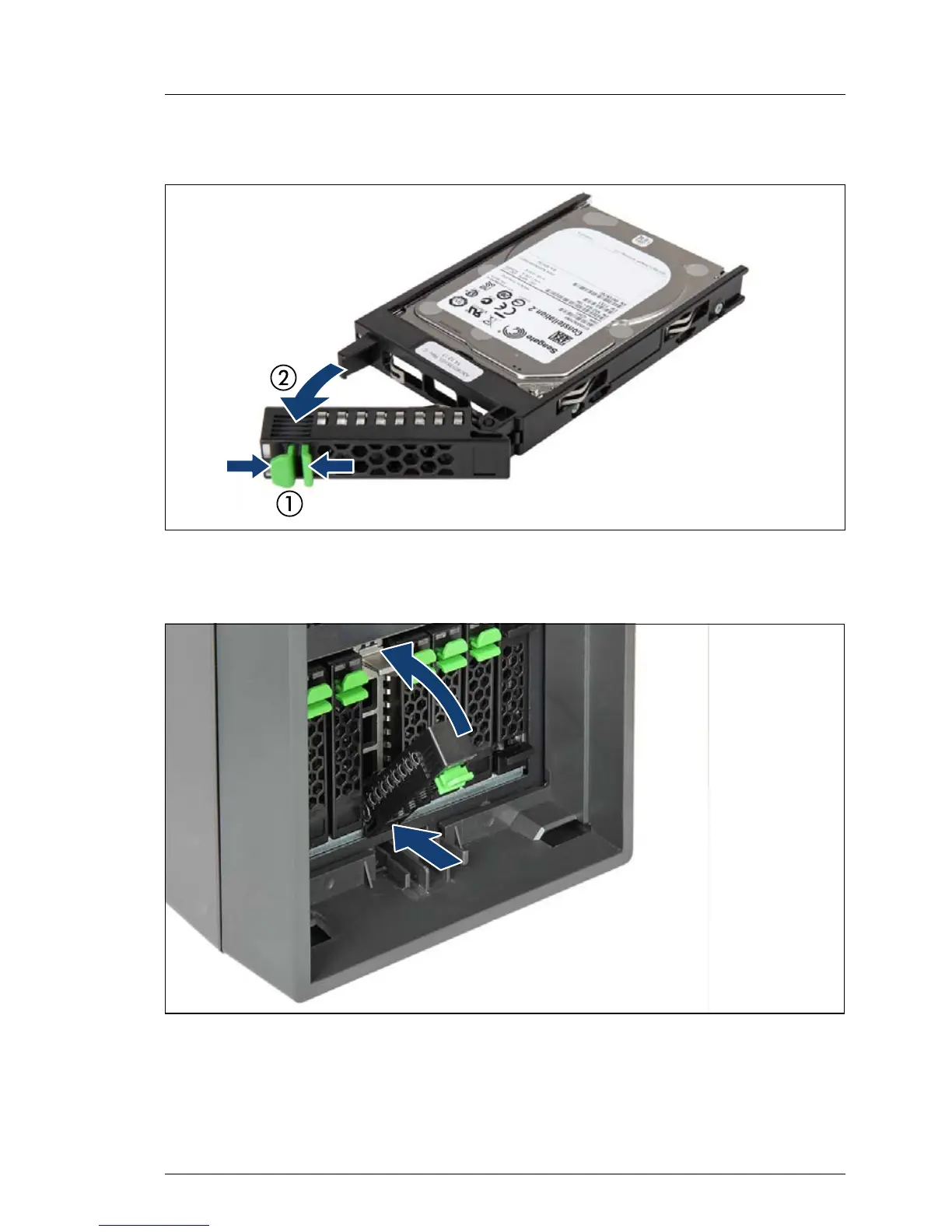

Figure 45: Opening the 2.5-inch HDD / SSD module locking lever
Ê Pinch the green locking clips (1) and open the locking lever (2).
Figure 46: Inserting the 2.5-inch HDD / SSD module
Ê Insert the HDD / SSD module into a drive bay and carefully push back as far
as it will go.
Ê Close the locking lever to lock the hard disk drive in place.

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
