138 Upgrade and Maintenance Manual TX1330 M1
Hard disk drives / solid state drives
For further information, please refer to the "ServerView Suite RAID
Management" user guide.
Ê If applicable, "Removing the HDD bay cover" on page 55
7.3.4.2 Removing a 3.5-inch HDD module

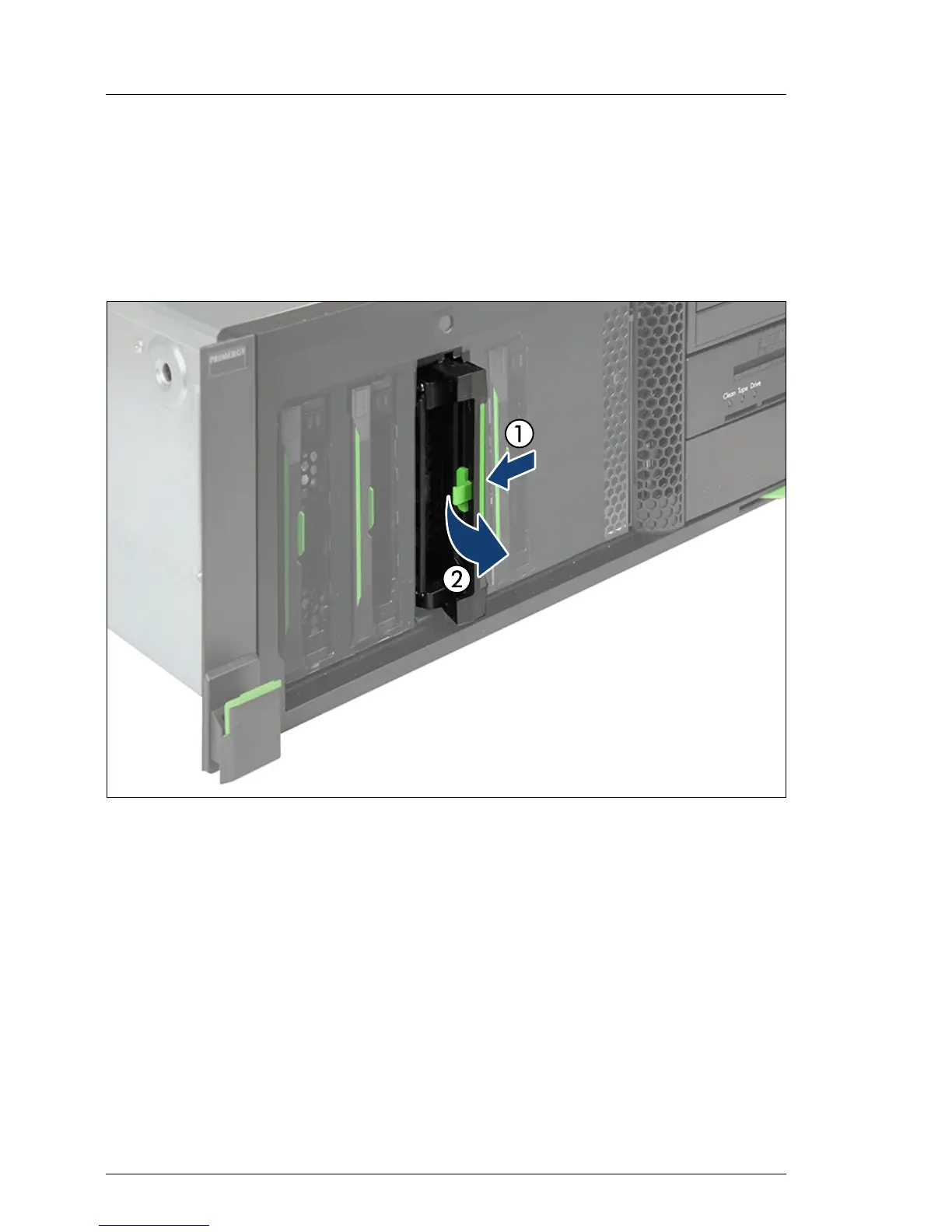

Figure 56: Removing a 3.5-inch HDD module
Ê While pressing down on the locking button (1) fold up the lever (2).
I Thereby, the HDD module is pushed out of its drive bay by about 1 cm
and disconnected from the SAS / SATA backplane.
Ê Wait about 30 seconds to allow the hard disk drive to spin down.
Ê Pull the HDD module completely out of its bay.

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
