17.1.3 Server interior

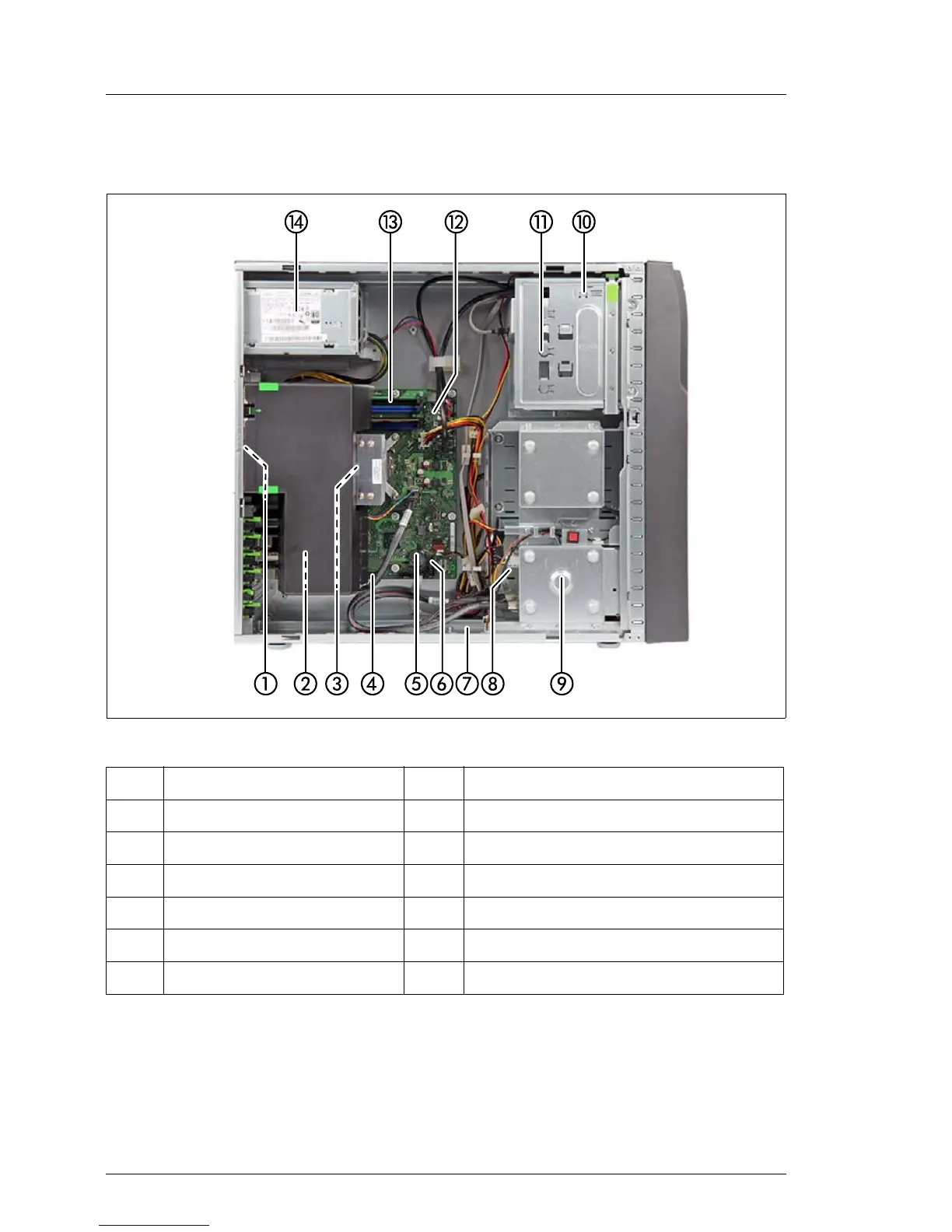

Figure 223: Interior (example: 2.5-inch HDD model, standard power supply)
1 System fan 8 SAS / SATA backplane
2 Expansion card slots 9 HDD / SSD drive bay
3 Processor / heat sink 10 Front panel module bay
4 TPM 11 Accessible drive bay
5 CMOS battery 12 System board D3239
6 UFM 13 Memory modules
7 BBU/FBU 14 Standard power supply unit

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
