Fujitsu Server PRIMERGY TX1330 M1 User Manual

TX1330 M1 Upgrade and Maintenance Manual 157
System fan and air duct
8.3.3 Installing the new system fan
Ê Insert the system fan into the air duct.

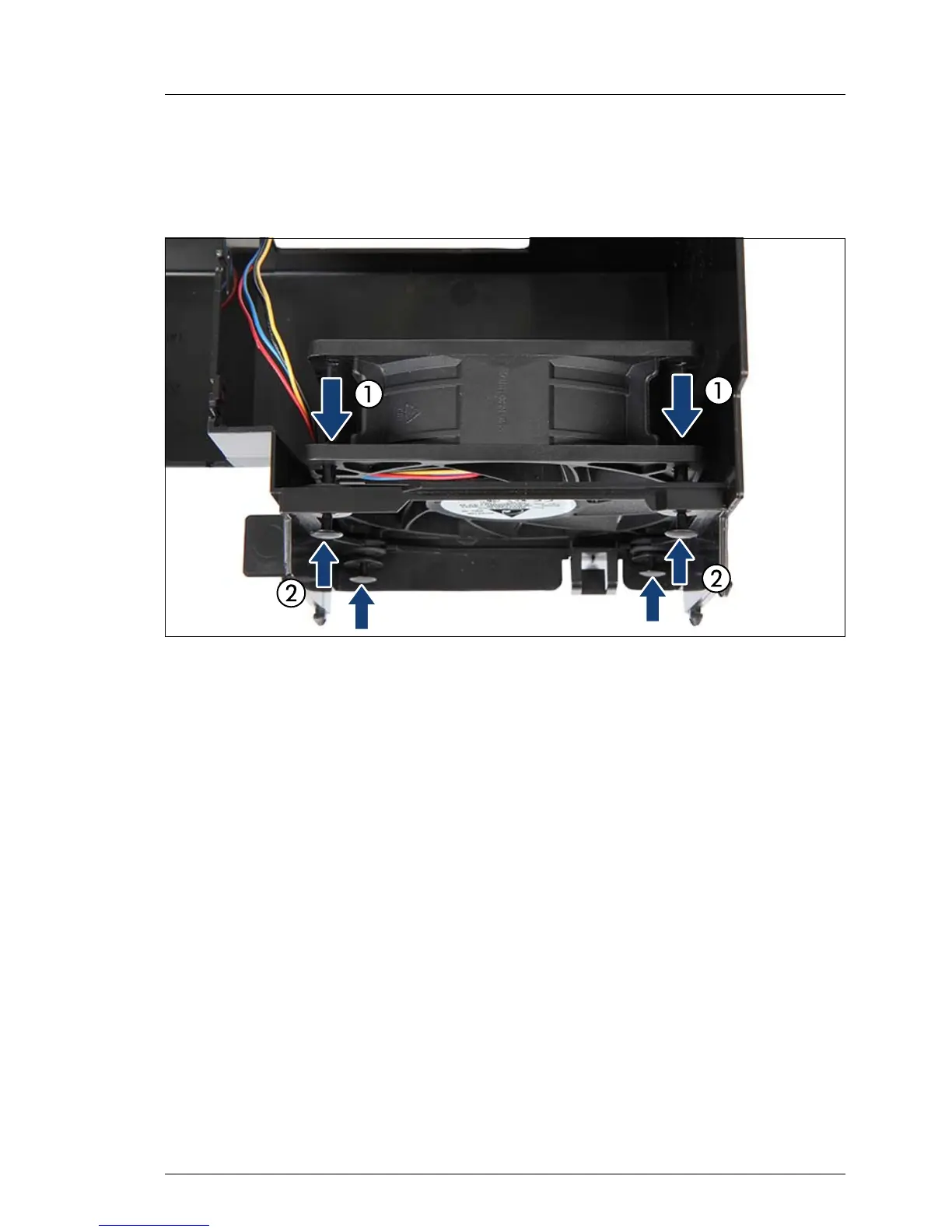

Figure 74: Installing the system fan in the air duct
Ê Push the system fan on the snap rivets (1).
I Notice the position of the fan cable. Ensure that the fan cable is not
pressed.
Ê Insert and tightly push the four safety pins into the snap rivets (2).
Ê Insert the fan cable in the guidings (see figure 71).
8.3.4 Concluding steps
Ê "Installing the fan module" on page 152
Ê "Reassembling" on page 58
Ê "Connecting the server to the mains" on page 67
Ê "Switching on the server" on page 68
Ê "Performing a fan test after replacing a defective fan" on page 96
