Ê Secure the rack front cover to the chassis with two screws on either side
(see figure 7 on page 52).
Ê Insert and slide the ID card into its slot until it locks in place (see close-up in
figure 6 on page 52).
4.5.1.2 Installing the top cover

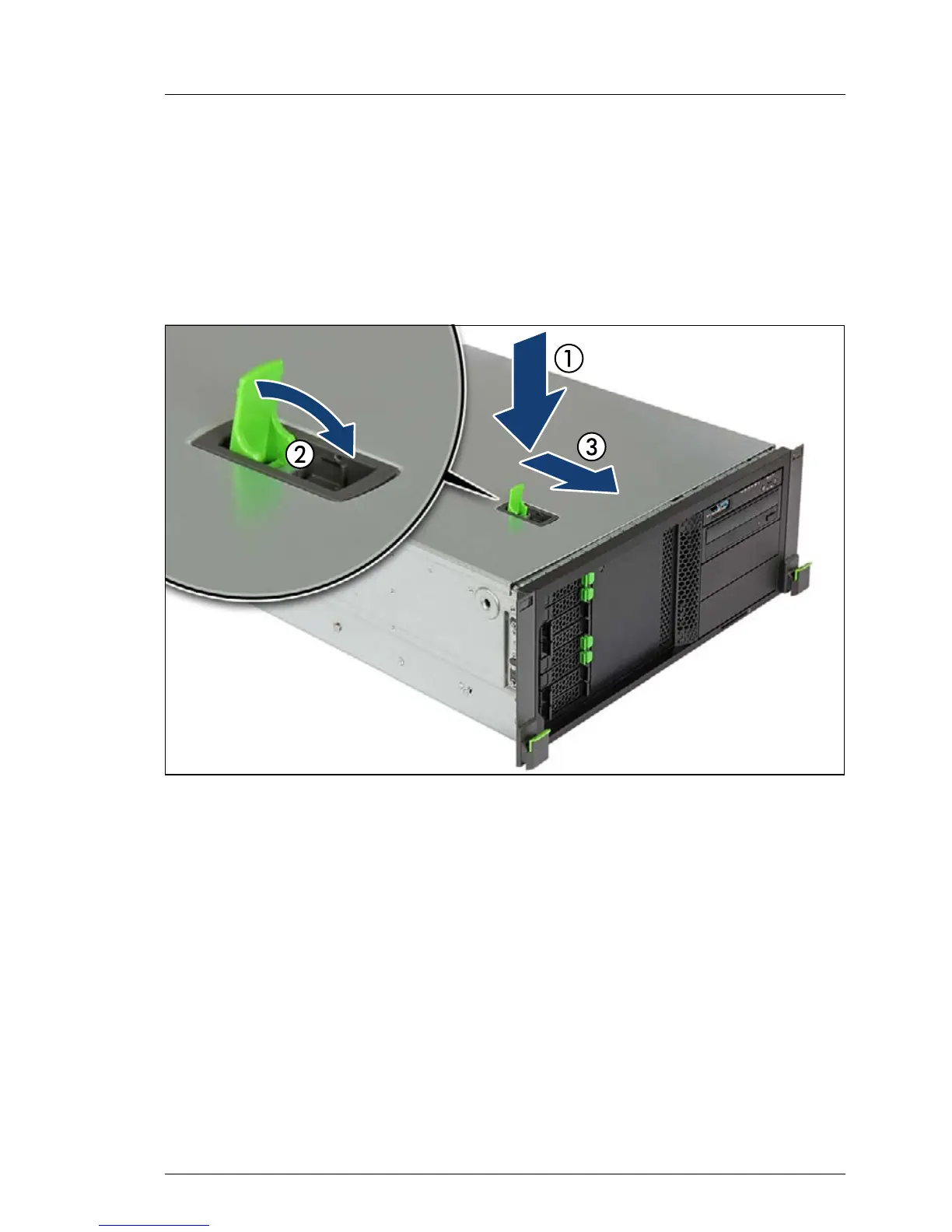

Figure 15: Installing the top cover (rack server)
Ê Check if the locking lever on the top cover is open.
Ê Lower the top cover onto the chassis, recessed by 2 cm (1).
Ê Close the locking lever on the top cover (2). This will slide the top cover shut
engaging the locking mechanism (3).
