Fujitsu Server PRIMERGY TX1330 M1 User Manual

136 Upgrade and Maintenance Manual TX1330 M1
Hard disk drives / solid state drives

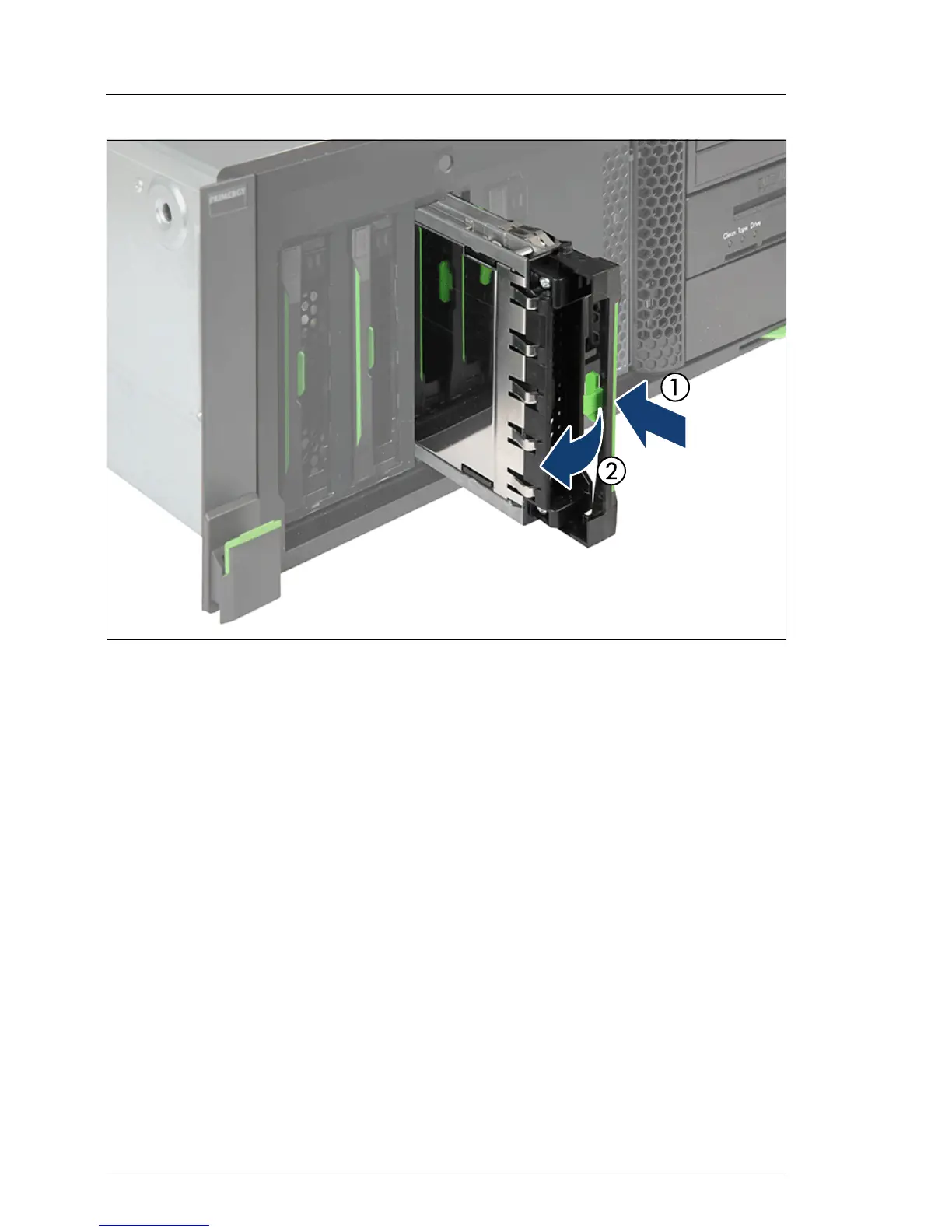

Figure 55: Inserting the 3.5-inch HDD module
Ê Insert the HDD module into a drive bay and carefully push back as far as it
will go (1).
Ê Fold down the lever to lock the HDD module in place (2).
7.3.3.4 Concluding steps
Ê If applicable, "Installing the HDD bay cover" on page 64
Ê "Performing a RAID array rebuild" on page 90

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
