Fujitsu Server PRIMERGY TX1330 M1 User Manual

TX1330 M1 Upgrade and Maintenance Manual 327
Appendix
17.2.1.4 I/O panel indicators

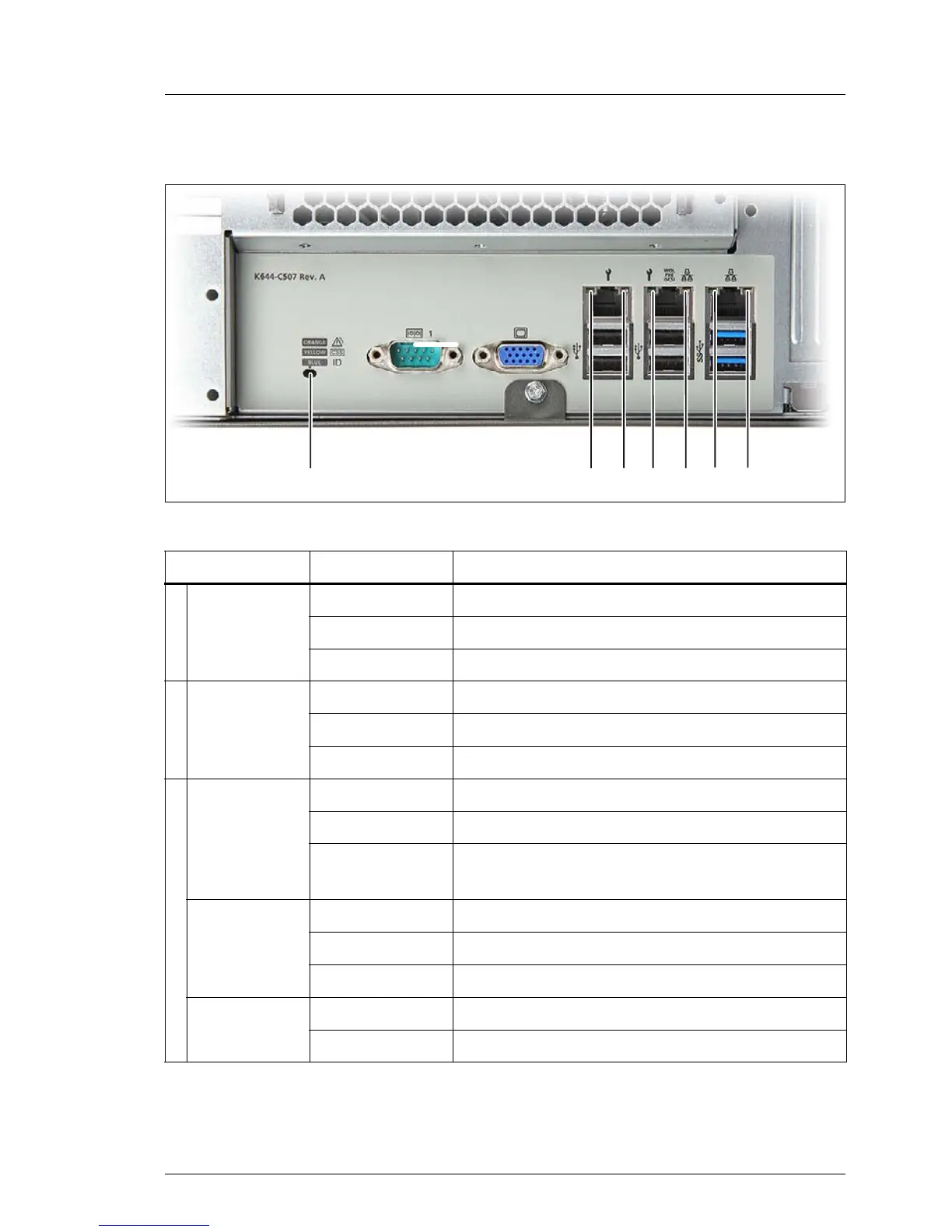

Figure 228: I/O panel indicators
Indicator Status Description
1
LAN
link/transfer
green on LAN connection established
off no LAN connection
green flashing data transfer in progress
2 LAN speed
yellow on traffic a transfer rate of 1 Gbit/s
green on traffic a transfer rate of 100 Mbit/s
off traffic a transfer rate of 10 Mbit/s
3
Global error
indicator
off no critical event (non CSS component)
orange on prefailure detected (non CSS component)
orange
flashing
non CSS component failure
CSS
indicator
off no critical event (CSS component)
yellow on prefailure detected (CSS component)
yellow flashing CSS component failure
ID indicator
blue on Localizes the server
blue flashing Local monitor off
햴
햲 햳
햲 햳 햲 햳

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
