176 Upgrade and Maintenance Manual TX1330 M1
Expansion cards and backup units
9.4.1.2 Removing the PCI slot bracket

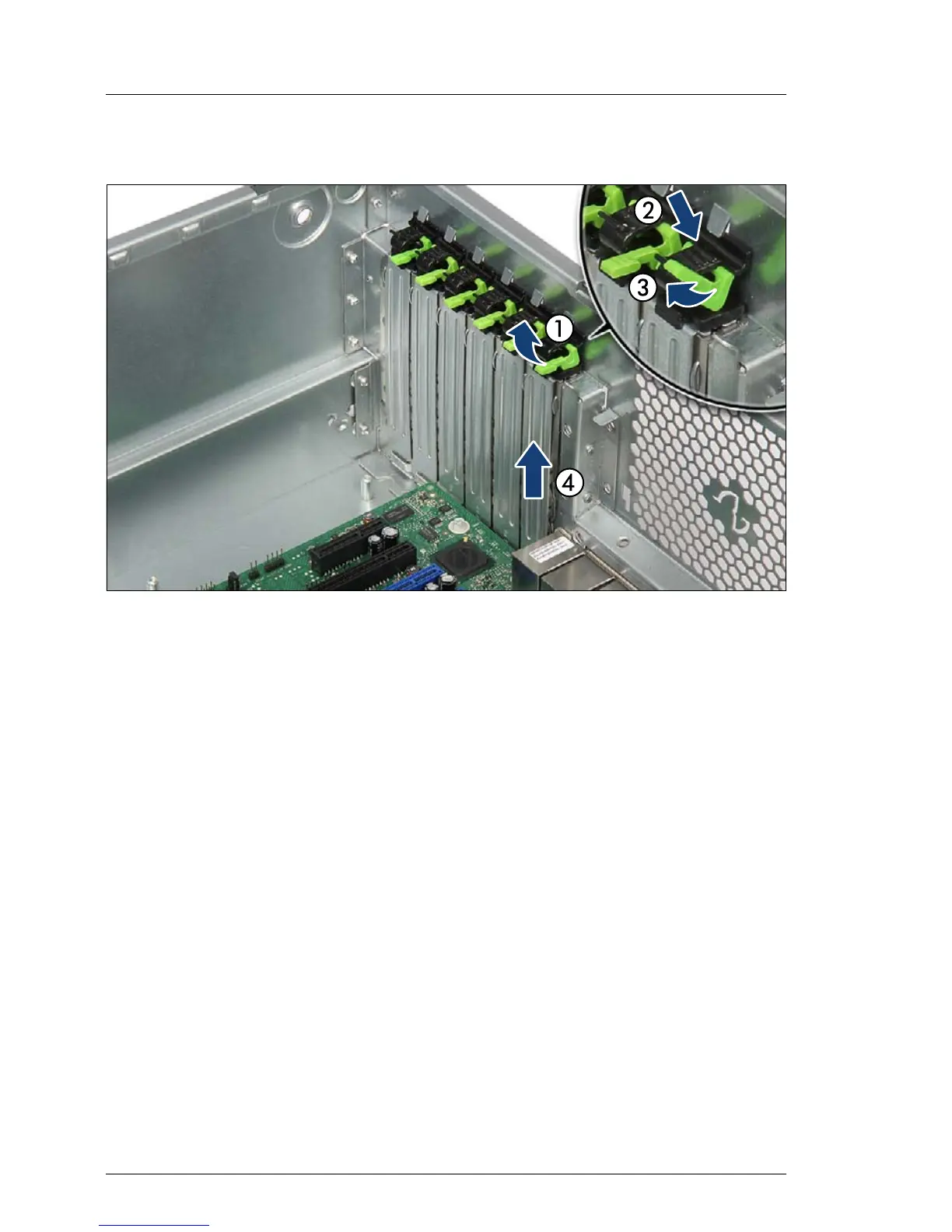

Figure 97: Removing the PCI slot bracket
Ê Fold up the locking handle on the slot bracket clamp (1).
Ê Press down on the slot bracket clamp to disengage it (2).
Ê Remove the slot bracket clamp (3).
Ê Remove the slot bracket (4).
V CAUTION!
Keep the slot bracket for further use.
Always replace slot brackets into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
