9.5.3 Installing a BBU
V CAUTION!
For further safety information, please refer to chapter "Important
information" on page 31.
9.5.3.1 Preliminary steps
Ê "Disabling SVOM boot watchdog functionality" on page 70
Ê "Shutting down the server" on page 46
Ê "Disconnecting the server from the mains" on page 46
Ê "Getting access to the component" on page 47
Ê "Removing the fan module" on page 151
9.5.3.2 Connecting the BBU cable to the BBU

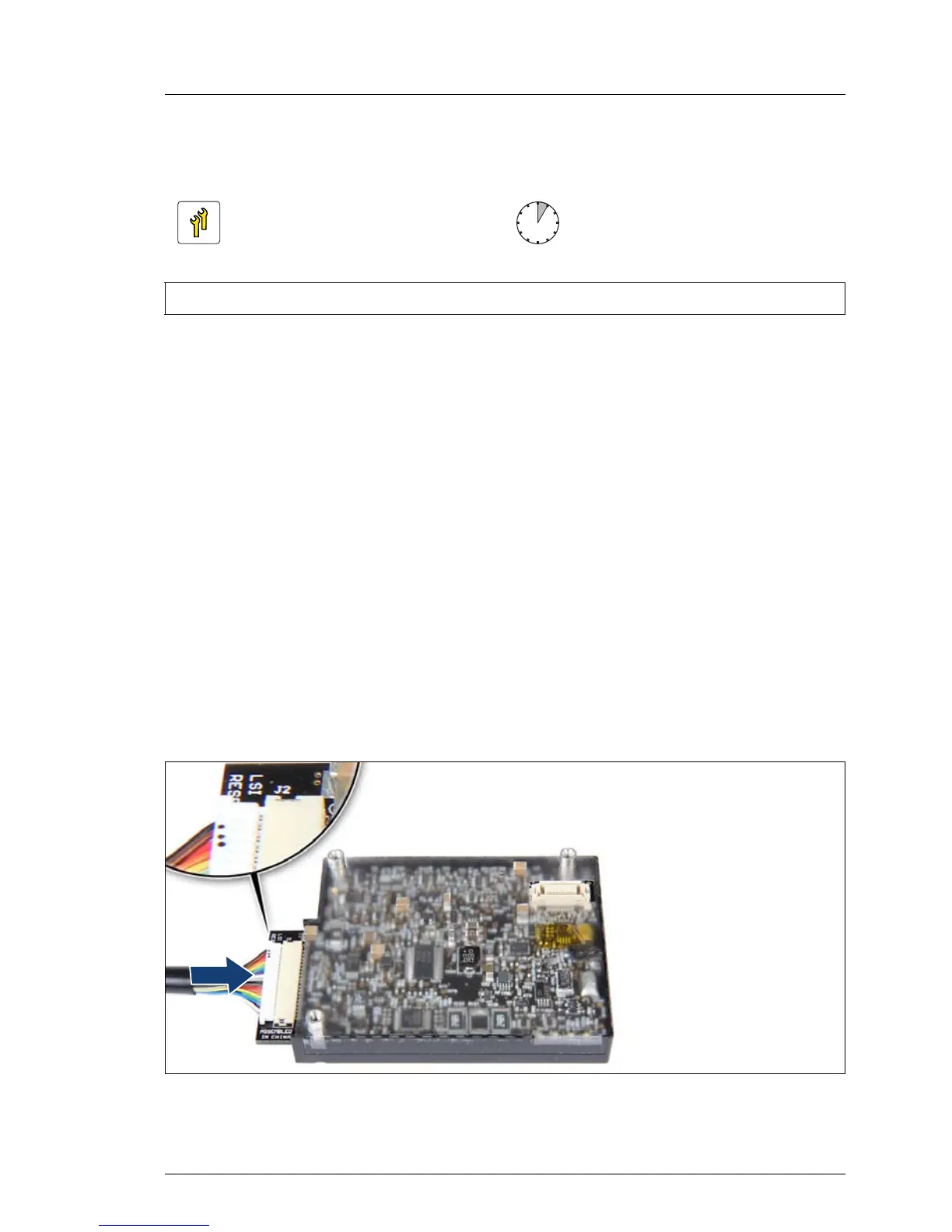

Figure 114: Connecting the BBU cable
Ê Connect the BBU cable to the BBU.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
