220 Upgrade and Maintenance Manual TX1330 M1
Processors
11.2.3 Removing the processor

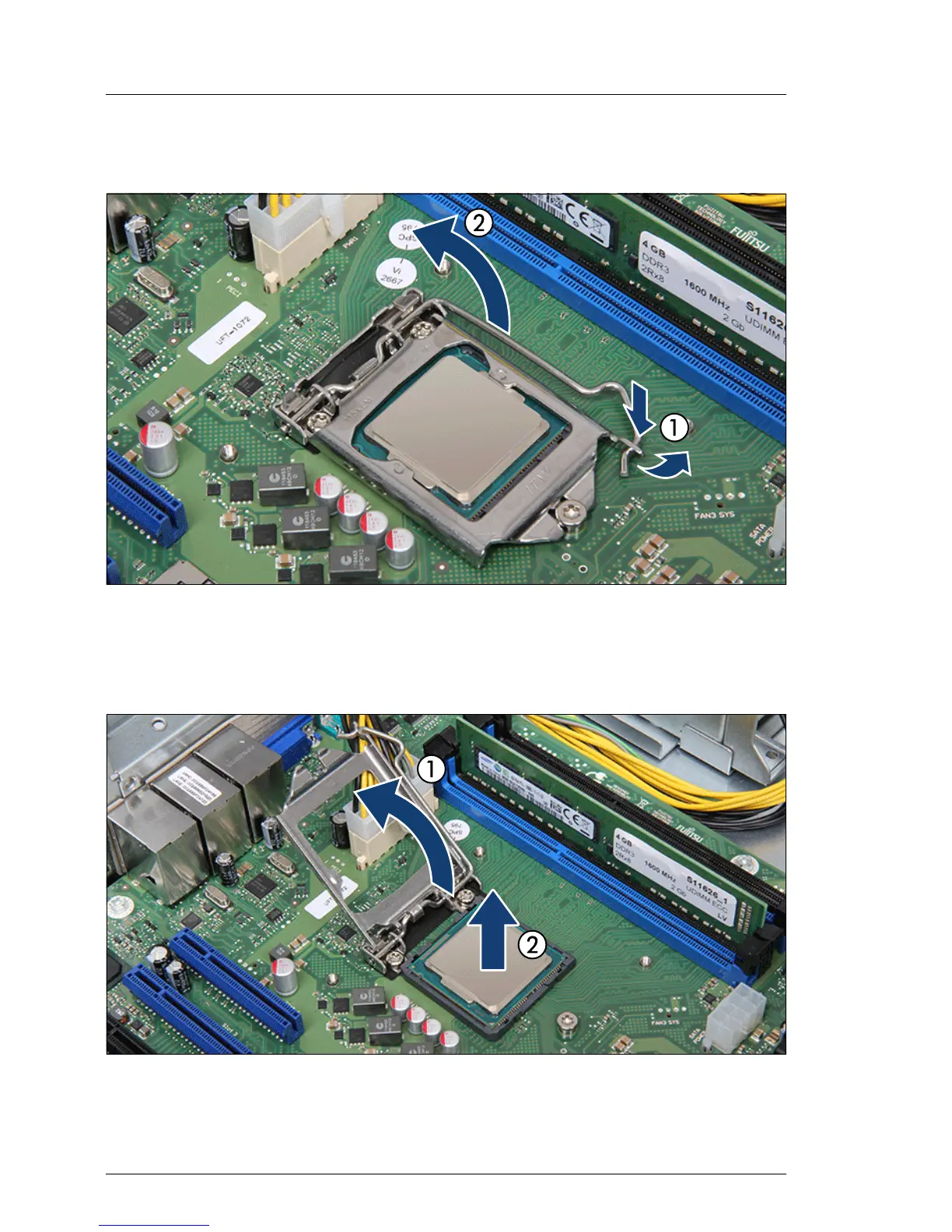

Figure 126: Unlatching the socket lever
Ê Unlatch the socket lever by pushing it down and away from the socket (1).
Ê Fold back the socket release lever (2).
Figure 127: Removing the processor
Ê Rotate the socket lever to lift the load plate away from the socket (1).

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
