Fujitsu Server PRIMERGY TX1330 M1 User Manual

TX1330 M1 Upgrade and Maintenance Manual 133
Hard disk drives / solid state drives
7.3 3.5-inch HDD configurations
7.3.1 Mounting order
Maximum configuration: 4x 3.5-inch HDDs

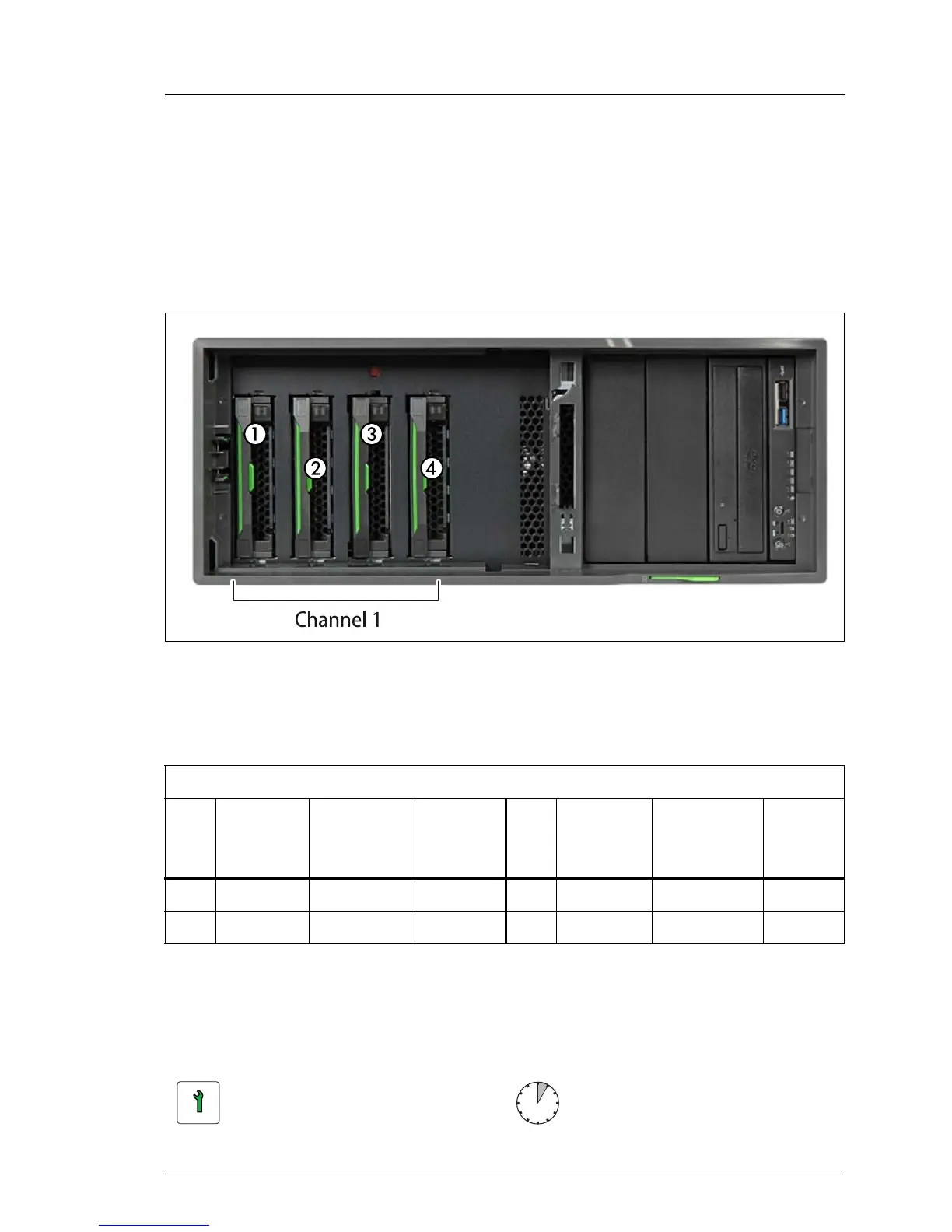

Figure 52: 3.5-inch HDD mounting order (example tower server)
7.3.2 HDD naming scheme
7.3.3 Installing 3.5-inch HDD modules
3.5-inch HDDs
Bay
RAID
Manager
#
Channel
log.
Drive #
Bay
RAID
Manager
#
Channel
log.
Drive #
1 [0] 103[2] 12
2 [1] 114[3] 13
Table 5: HDD naming scheme
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
